1-2 Ton Per Hour Small Ring Die Chicken Feed Pellet Production Line For Sale

2020-09-22 Back to List

1.What is 1-2 ton per hour small chicken feed pellet production line?

Widely used 1-2 ton per hour ring die chicken feed pellet production line is used to process poultry chicken animal feeding pellets. Our 1-2t/h complete set poultry chicken animal feed pellet production line can produce 2-12mm of chicken feed pellets, the yield is 1-2t/h. This feed complete machine set is widely used in small and medium size of chicken feed mill, livestock farms and individuals who raise animals, etc. The chicken feed manufacturing machines are also suitable for pigs feed production, cattle feed production, sheep feed production, rabbits feed production,ducks feed production, geese feed production and other aquatic feed production.

2.Function of 1-2 Ton Advanced Small Poultry Chicken Feed Mill Production Line

1-2 ton advanced small poultry chicken feed mill production line has a way to chicken feed grinder, chicken feed mixer machine, conveyors,chicken feed pelletizer, pellet cooler in one means, which can grind the maize and bean pulp by the grinding machine for chicken feed, then mix with the wheat bran, bone meal, microelement, vitamin and other raw materials to make the complete chicken pellet feed. Those complete poultry chicken feed is made into pellet feeds by ring die chicken feed pellet mills. The chicken pellet feeds can be packed directly after the screening and cooling section.

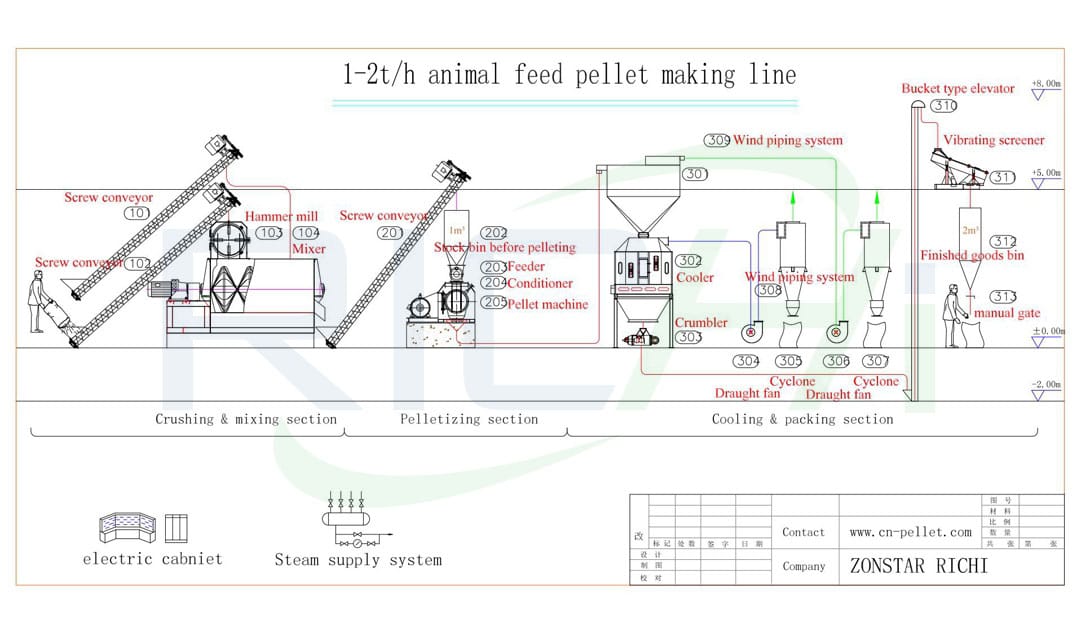

1-2 ton per hour chicken feed line manufacturing process flow chart:

As the picture, the corn and bean cake are ground by the self-suction grinding machine. The materials that don't need to be ground like wheat bran, bone meal, microelement, vitamin directly go into the mixing machine from the feeding port. All the materials are mixed uniformly and sent to the hopper then sent into feed bin by screw conveyor. After that, the materials go into 1-2 ton per hour ring die chicken feed pellet making machine equipment evenly from the feeding port and are produced into pellets. Those pellets then go into the cooling machine. Under the function of ID fan, the pellets are cooled to the temperature that is not over 5℃ than the room temperature. The cool pellets are screened by the vibrating screen, then they can be packaged.

Note: We can customize the 1000-2000kg/h chicken poultry animal feed pellet production line with factory price according to the customer's requirement.

3.Performance of 1-2 ton per hour small feed mill plant for chicken

(1)Compact structure, occupying small area, low requirement to the plant, low investment.

(2)Easy to install, no need for civil engineering and welding at scene. The feed pellet machine can be used directly after the connection with low installation cost.

(3)Continuous production, easy operation, small labor capacity, needing less stuff, the whole production line only needs 1-2 persons and the production cost is low in the later period.

(4)Wide application, it can produce both livestock feeds and fish feeds, which is suitable for the small scale and medium scale feeding production plant, livestock farms and individuals who raise animals.

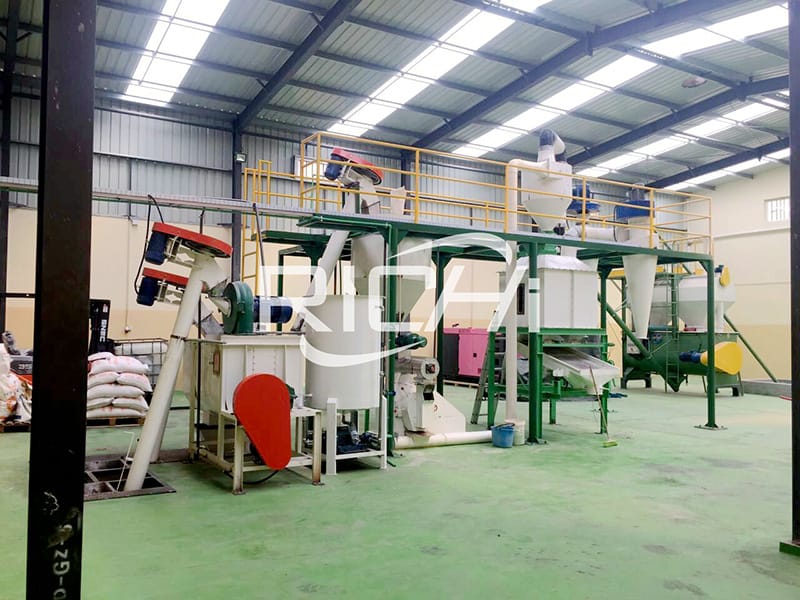

4.Successful Case of conventional small chicken feed mill plant 1-2 ton per hour 250 feed mill

1-2t/h chicken feed pellet production machine line for poultry feed in Australian

1-2t/h simple home use poultry chicken feed pellet making line in Papua New Guinea

1-2t/h small scale chicken feed pellet processing plant in Peru

1-2t/h automatic small plant chicken pellet feed production plant in Sudan

1-2t/h poultry chicken broiler animal feed pellet making plant in Tanzania

1-2T/H poultry chicken feeding plant in Cape Verde

1-2t/h poultry chicken feedstuff powder feed processing unit line in Tanzania
