pellet plant

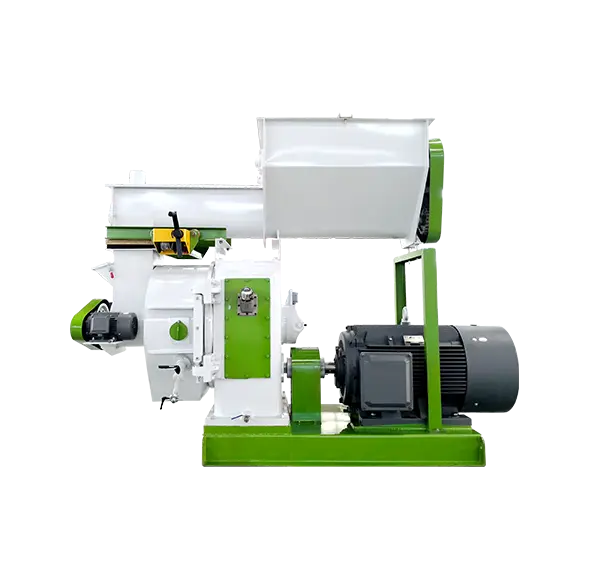

Animal Bedding Pellet Machine for Clean, Comfortable Equine Pellets

Optimized feed inlet with anti-arching configuration, supplemented by Siemens frequency conversion feeding motor, so that any wood material can be silky smooth into the pelletizing chamber, improve production efficiency and at the same time reduce the failure rate of the equipment.

RICHI Machinery Co., Ltd

Brand
RICHI

animals

Raw Material
Wood

equine bedding pellets

Finished
Equine Bedding Pellets

equine bedding pellets machine
animal bedding pellet machine

Feed Inlet

01

The design of the feed inlet ensures smooth and stable entry of raw materials into the animal bedding pellet machine. Its wide structure in conjunction with the inverter-driven motor minimizes the risk of clogging and improves operating efficiency. The adjustable inlet controller allows for precise adjustment of the feed rate, which is essential for maintaining uniform pellet production and adapting to different feedstocks.

Force Feeder

02

Organic based wooden raw materials are usually a very fine and lightweight powder after the raw material processing. The emergence of forced feeders greatly improves the feeding efficiency and provides a strong guarantee for the pelletizing process. It ensures the continuity and consistency of equine pellets production.

Pelletizing

03

The core function of pelletizing is to compress raw materials into dense equine pellets. Adjustable mold sizes allow for the production of pellets of varying diameters to meet the needs of different industry applications. High compression technology ensures uniform and consistent pellet quality, reduces waste, and maximizes nutrient density, making it ideal for large-scale equine pellet production.

Drive Motor

04

The drive motor is the power unit of the equine stall pellets machine, providing the necessary torque to maintain a consistent pelletizing yield. It features a high-efficiency, energy-efficient motor that reduces power consumption while providing reliable performance under heavy loads. The durable motor design ensures long-term operation with minimal maintenance, reducing overall production costs.

Body Structure

05

The body structure of the equine pellet mill is built from robust, corrosion-resistant materials to withstand continuous use in demanding environments. It is engineered to reduce vibrations during operation, which not only enhances machine stability but also minimizes wear and tear on internal components. This structural integrity ensures a longer lifespan and more reliable performance of the pellet mill.

arch breaking feeder of pellet machine

Industrialized

pelleting chamber of pellet machine

Stabilization

simense motor of pellet machine

Sustainability

GET QUOTE

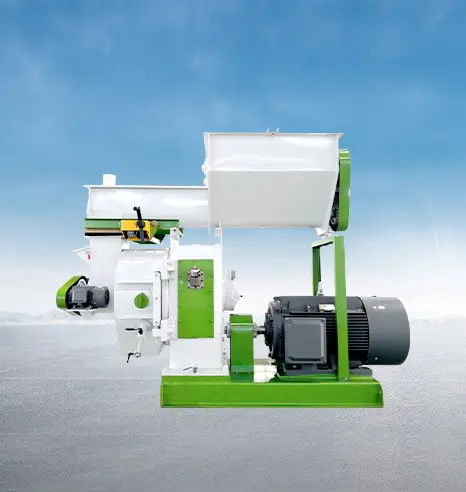

equine bedding wood pellets machine
  • Feed Inlet
  • Force Feeder
  • Pelletizing
  • Drive Motor
  • Body Structure



Parameter Table

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH678 MZLH768
Main Motor Power(Kw) 22 37 90 132 185 250
Arch Breaker Feeder Power(Kw) 2.2 2.2 3 3 3 4
Forced Feeder Power(Kw) 0.75 0.75 1.5 1.5 1.5 1.5
Ring Die Inner Diameter (mm) 320 350 420 520 673 762
Finished Pellets Diameter (mm) 4~12 4~12 4~12 4~12 4~12 4~12
Production Output (TPH) 0.2-0.3 0.3-0.5 1.0-1.2 1.5-2.0 2.5-3.0 3.0-4.0

RICHI's Technological Innovations in Animal Bedding Pellet Machine

Technological innovation is essentially all about customer service. To make you feel the convenience of RICHI's products, technologies and solutions in the process of equine stall pellets production.

Get Quote

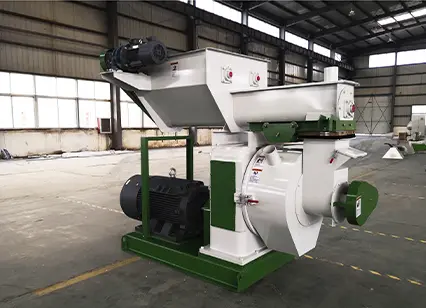

horse bedding pellets machine

Feeding systems

The frequency conversion feeding system with anti-arching improves the continuity and consistency of the raw material conveyed to a large extent. At the same time there is still a forced feeder escorting the feeder before pelletizing. This improves the yield and quality of the equine pellets production from the source.

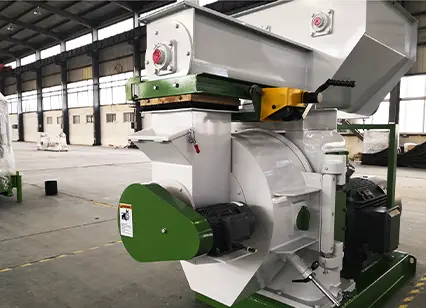

equine pine pellets machine

Drive system

High-end Siemens industrial grade drive motor drives the drive shaft of RICHI animal bedding pellet mill, which is more stable and durable than traditional belt drive. In the long run, this not only improves efficiency but also saves maintenance costs.

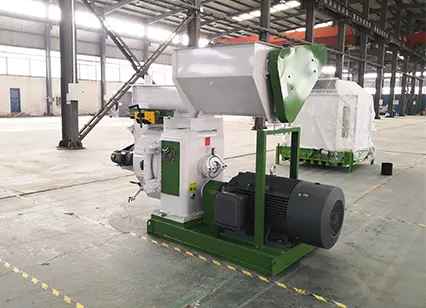

horse wood pellets machine

Structure and material

The body of the machine is made of high quality and high specification alloy steel, which is sturdy and durable, reduces resonance and runs stably. The parts that come into contact with the raw material are made of high grade stainless steel, which does not affect the raw material in any way and greatly improves corrosion resistance.

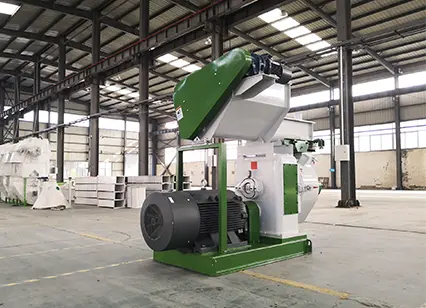

equine stall pellets machine

Control and Safety

Each equine bedding pellets machine is equipped with an independent electric control system and safety stop function. It can not only avoid losses caused by perceived errors, but also effectively protect the pellet mill and subsequent production equipment.

Your Seamless Buying Process: From Order to After-Sales Support

Explore our efficient and streamlined purchasing process, designed to simplify and optimize the acquisition of a complete equine bedding pellet production plant. Every stage is tailored to meet your specific requirements, from the initial schematic design and precise manufacturing processes to secure payment methods and seamless on-site installation and commissioning. Furthermore, our comprehensive spare parts service provides ongoing support and ensures optimal machine performance, offering you long-term reliability and peace of mind.

build your complete pellet production line

Solution Formulation

Solution Formulation

Equipment Manufacture

Equipment Manufacture

Secure Payment

Secure Payment

Spare Parts Service

Spare Parts Service

Complete Solutions For Animal Bedding Pellet Production

Customize Your Animal Bedding Pellet Plant Immediately
Raw Material Processing

Raw Material Processing

Essential for preparing and conditioning materials to ensure uniform quality before wood pelletizing.

Pelletizing

Pelletizing

The core process where prepared organic biomass materials are compressed into dense, high-quality equine pellets.

Finished Pellet Processing

Finished Pellet Processing

Involves cooling, screening, and packaging to maintain pellet integrity and ready them for use or sale.

Auxiliary Equipment

Auxiliary Equipment

Supports the equine bedding pellet production line by enhancing material flow, reducing downtime, and maintaining operational efficiency.

Accessories

Accessories

Includes essential components like ring dies and rollers, crucial for consistent equine bedding pellet production and machine performance.

HENAN RICHI MACHINERY CO.,LTD

GLOBAL CASE STUDY

Henan Richi Machinery Co., Ltd was founded in 1995. After nearly thirty years of development and expansion, RICHI Machinery has grown into a modern enterprise covering an area of 60,000 square meters and integrating independent research and development, production and sales.

The products involve feed pellet machinery and engineering, biomass pellet machinery and engineering, organic fertilizer machinery and engineering, conveying equipment and engineering, steel structure engineering, silo, automation control technology and engineering, etc., and each product series has passed ISO 9001 international quality management system certification and CE certification!

Get Quote
Aniaml Feed Pellet Production Line
UZ

10-15 TPH Aniaml Feed Pellet Production Line

This state-of-the-art equipment supports a wide range of feed formulations for poultry and livestock, improving feed quality and reducing production costs. And its scalable design accommodates future expansion.

Learn More
Industry Pellet Production Line
US

10-12 TPH Industry Pellet Production Line

The system is fully automated, enabling seamless operation with minimal labor and supporting sustainable agricultural practices through the use of alfalfa and other forages.

Learn More
Wood Fuel Pellet Production Line
MX

10 TPH Wood Fuel Pellet Production Line

Hardwood residues are processed into durable, high-energy biomass pellets. Designed for industrial production, the system utilizes advanced drying and pelletizing technologies to ensure efficiency and quality.

Learn More
Aquatic Feed Pellet Production Line
NGA

5-7 TPH Aquatic Feed Pellet Production Line

This project is capable of producing fish and shrimp feeds, equipped with precise extrusion technology for superior feed quality. The customer emphasizes its reliability and ease of operation as the main advantages.

Learn More
Complete Solutions For Pellet Production

Explore RICHI’s Complete Solutions For Animal Bedding Pellet Production

What raw materials do you intend to use for pellet production?

How many tons per hour about this plant you want to build?

Where will your pellet mill plant be built?

When do you plan to start this project?

Animal Bedding Pellet Machine FAQs: Your Top Questions Answered

  1. Wood Shavings: Soft, absorbent, and ideal for livestock.
  2. Sawdust: Finely milled and highly absorbent, perfect for small animals.
  3. Straw: A natural, cost-effective option for larger animals.
  4. Corn Stalks: Provides a soft, biodegradable option.
  5. Recycled Paper: Eco-friendly and absorbent for various animal types.

Animal bedding pellets benefit livestock by providing a highly absorbent and low-dust environment, helping to reduce odor and maintain cleaner living areas. The pellets absorb moisture effectively, keeping animals dry and comfortable, which reduces the risk of health issues related to damp bedding. Additionally, bedding pellets are easy to handle, reduce waste, and can be composted after use, making them an eco-friendly option for farms. This type of bedding also lowers the need for frequent changes, saving both time and labor.

Bedding pellet machines can produce pellets in a range of sizes, typically from 4 mm to 12 mm in diameter, depending on the needs of the animals. Smaller pellets are often used for small animals or pets, while larger sizes are suitable for livestock bedding, providing greater absorbency and comfort. Pellet size can be adjusted by changing the die in the pellet machine, allowing flexibility to meet specific bedding requirements.

Yes, operator training is typically required for using an animal bedding pellet machine. Training helps operators understand machine settings, raw material requirements, and optimal moisture levels, which are essential for efficient production and quality bedding pellets. Training also includes basic maintenance and troubleshooting skills to ensure the machine’s long-term performance and to minimize downtime. Well-trained operators can significantly improve productivity, pellet quality, and machine lifespan, making training a valuable investment.

Animal bedding pellet machines are designed to be energy-efficient, optimizing power use during the pelletizing process. Advanced technology and efficient motors help reduce overall power consumption while maintaining high productivity. Many models include features that minimize energy waste, such as adjustable feed rates and optimized pelletizing chambers, ensuring that only the necessary energy is used. This efficiency lowers operational costs and reduces environmental impact, making them a cost-effective choice for producing high-quality bedding pellets.

  1. Regular Cleaning: Remove material buildup in the die, rollers, and feed inlet to prevent clogs and maintain efficiency.
  2. Lubrication: Grease moving parts like bearings and rollers according to the manufacturer’s schedule to reduce friction and wear.
  3. Parts Inspection: Regularly check wear parts, such as dies and rollers, for signs of wear or damage and replace as necessary.
  4. Calibration: Ensure settings are optimized for different materials and production requirements.
  5. Safety Checks: Test safety features, like emergency stops, for reliable operation.

Yes, the animal bedding pellet machine can produce pellets suitable for small pets like rabbits, guinea pigs, and hamsters. The machine allows for customization of pellet size and density to create soft, absorbent bedding ideal for small animals. By adjusting the die size and compression settings, the machine can produce appropriately sized pellets that maintain comfort and cleanliness in small pet habitats.

Yes, the animal bedding pellet machine is compatible with a variety of raw materials, such as wood shavings, straw, sawdust, and other soft fiber sources. The machine's design allows adjustments for different material types, including moisture content and fiber length, to ensure smooth processing and high-quality pellet output. This versatility makes it suitable for producing bedding for various animals, including livestock and small pets, while maximizing the absorbency and comfort of the final product.

The production capacity range of animal bedding pellet machines usually varies according to the model and application. Smaller models may produce about 500 kilograms per hour, suitable for small-scale operations, while larger industrial models can reach several tons or even dozens of tons per hour, making them an ideal choice for high-demand places such as large farms or animal facilities. The exact production capacity depends on factors such as the type of raw material, moisture content, and machine specifications.

The absorbency of animal bedding pellets typically lasts several days to weeks, depending on factors like the type of material, pellet density, and the animal’s activity. Bedding pellets are highly absorbent due to their compressed structure, which can retain moisture and reduce odor effectively for longer periods than loose bedding materials. Regular maintenance, such as removing soiled pellets and replacing them as needed, can help maintain cleanliness and comfort for the animals.
