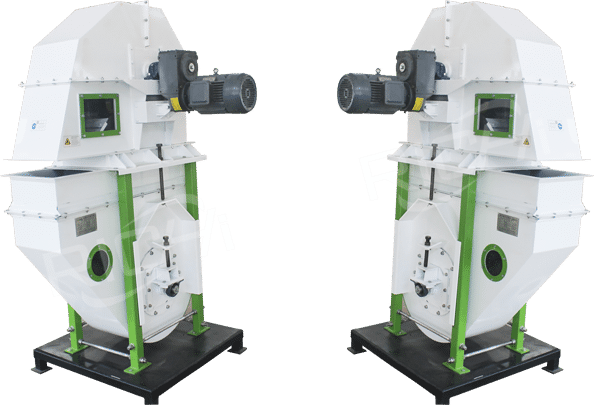

Bucket Elevator
- Brand : RICHI
- Capacity : 60m³
- Model : TDTG40/28
- Main Power : 5.5KW
-
Guiding Price :
Customized
Brief Introduction
With the reciprocating structure, through continuous feeding and throwing, the effect of lifting the material is achieved.
Get QuoteAdopt the split head wheel. it greatly reduced cost of replacing the head round rubber and workload. Refined rubber wheel, fire prevention, wear resisting, effectively prevent the belt slipping. Fast pressuring bucket. Adopt non-return device, could prevent the material blocking when sudden failure stop machine. Circular arc shape bottom, no residue. optional automatic running deviation alarm and speed monitoring system. Gravity tension and screw tension.
| Model | Linear velocity of the belt(m/s) | Bucket volume(L) | Power(kw) | Reducer | Maximum height(m) | Conveying volume(m³/h) |
| TDTG40/28 | 1.71 | 2.7 | 5.5 | XWD5-17-5.5 | 12-19 | 60 |
Bucket Elevator
| Model | Linear velocity of the belt(m/s) | Bucket volume(L) | Power(kw) | Reducer | Maximum height(m) | Conveying volume(m³/h) |
| TDTG26/18 | 1.23 | 1.3 | 2.2 | XWD4-17-2.2 | 3-10 | 20 |
| TDTG26/18 | 1.23 | 1.3 | 3 | XWD4-17-3 | 10-20 | 20 |
| TDTG26/18 | 1.23 | 1.3 | 4 | XWD4-17-4 | 20-35 | 20 |
| TDTG26/18 | 1.23 | 1.3 | 5.5 | XWD5-17-5.5 | 35-56 | 20 |
| TDTG40/23 | 1.71 | 2.27 | 3 | XWD4-17-3 | 3-9 | 50 |
| TDTG40/23 | 1.71 | 2.27 | 4 | XWD4-17-4 | 9-15 | 50 |
| TDTG40/23 | 1.71 | 2.27 | 5.5 | XWD5-17-5.5 | 15-23 | 50 |
| TDTG40/23 | 1.71 | 2.27 | 7.5 | XWD5-17-7.5 | 23-35 | 50 |
| TDTG40/23 | 1.71 | 2.27 | 11 | XWD6-17-11 | 35-54 | 50 |
| TDTG40/28 | 1.71 | 2.7 | 3 | XWD4-17-3 | 3-8 | 60 |
| TDTG40/28 | 1.71 | 2.7 | 4 | XWD4-17-4 | 8-12 | 60 |
| TDTG40/28 | 1.71 | 2.7 | 5.5 | XWD5-17-5.5 | 12-19 | 60 |
| TDTG40/28 | 1.71 | 2.7 | 7.5 | XWD5-17-7.5 | 19-29 | 60 |
| TDTG40/28 | 1.71 | 2.7 | 11 | XWD6-17-11 | 29-45 | 60 |
| TDTG50/23 | 2.14 | 2.27 | 3 | XWD4-17-3 | 3-7 | 60 |
| TDTG50/23 | 2.14 | 2.27 | 4 | XWD4-17-4 | 7-12 | 60 |
| TDTG50/23 | 2.14 | 2.27 | 5.5 | XWD5-17-5.5 | 12-19 | 60 |
| TDTG50/23 | 2.14 | 2.27 | 7.5 | XWD5-17-7.5 | 19-28 | 60 |
| TDTG50/23 | 2.14 | 2.27 | 11 | XWD6-17-11 | 28-43 | 60 |
| TDTG50/28 | 2.14 | 2.7 | 3 | XWD4-17-3 | 3-6 | 70 |
| TDTG50/28 | 2.14 | 2.7 | 4 | XWD4-17-4 | 6-10 | 70 |
| TDTG50/28 | 2.14 | 2.7 | 5.5 | XWD5-17-5.5 | 10-16 | 70 |
| TDTG50/28 | 2.14 | 2.7 | 7.5 | XWD5-17-7.5 | 16-23 | 70 |
| TDTG50/28 | 2.14 | 2.7 | 11 | XWD6-17-11 | 23-36 | 70 |
| TDTGK63/28 | 2.87 | 3.9 | 5.5 | XWD5-17-5.5 | 3-8 | 140 |
| TDTGK63/28 | 2.87 | 3.9 | 7.5 | XWD5-17-7.5 | 8-12 | 140 |
| TDTGK63/28 | 2.87 | 3.9 | 11 | XWD6-17-11 | 12-19 | 140 |
| TDTGK63/28 | 2.87 | 3.9 | 15 | XWD7-17-15 | 19-27 | 140 |
| TDTGK63/28 | 2.87 | 3.9 | 18.5 | Helical Gear | 17-34 | 140 |
| TDTGK63/28 | 2.87 | 3.9 | 22 | Helical Gear | 34-41 | 140 |
Application of Bucket Elevator
It is widely used for the vertical lifting of materials in many industries like ports, wharves, silos, warehouses, feed and so on.
Get QuoteAccessories
RICHI manufactures high-spec accessories using high-quality steel to improve equipment quality and reduce customer maintenance costs.
Get Quote
-
SIEMENS
Motor
-
SKF
Bearing
-
Pellet Machine
Ring Die
-
Pellet Machine
Ring Die
Equipment In RICHI Workshop

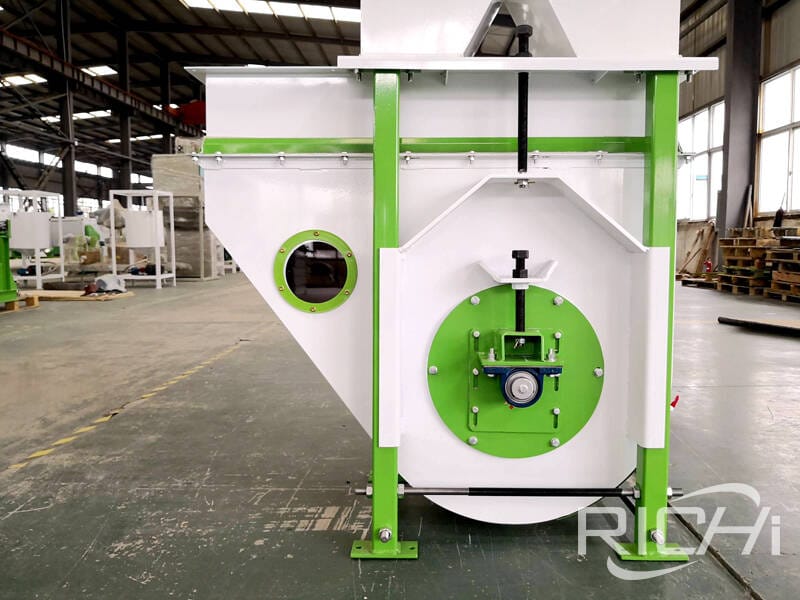

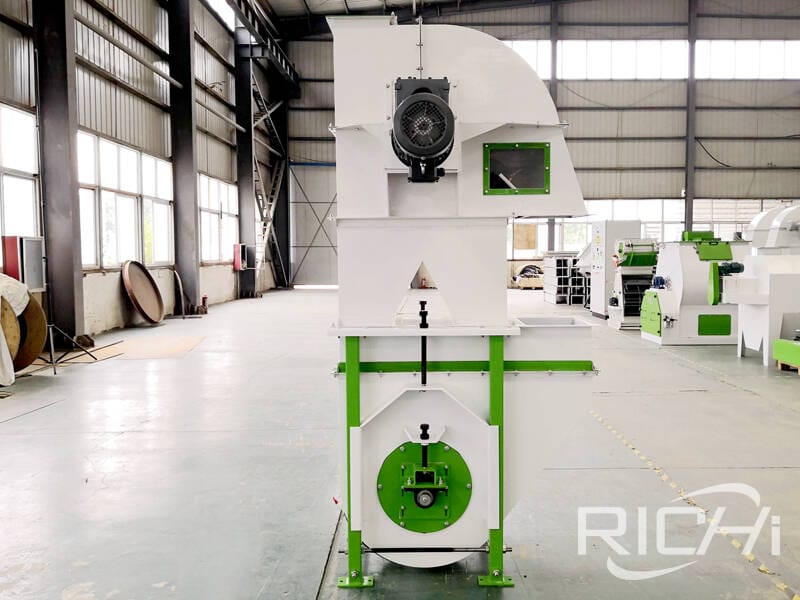

- Bucket Elevator

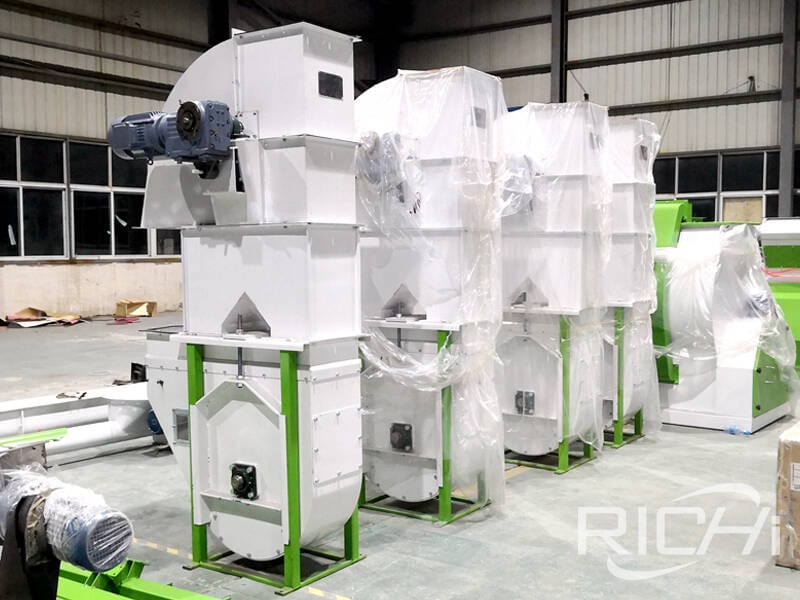

- Bucket Elevator
- SKF Bearing

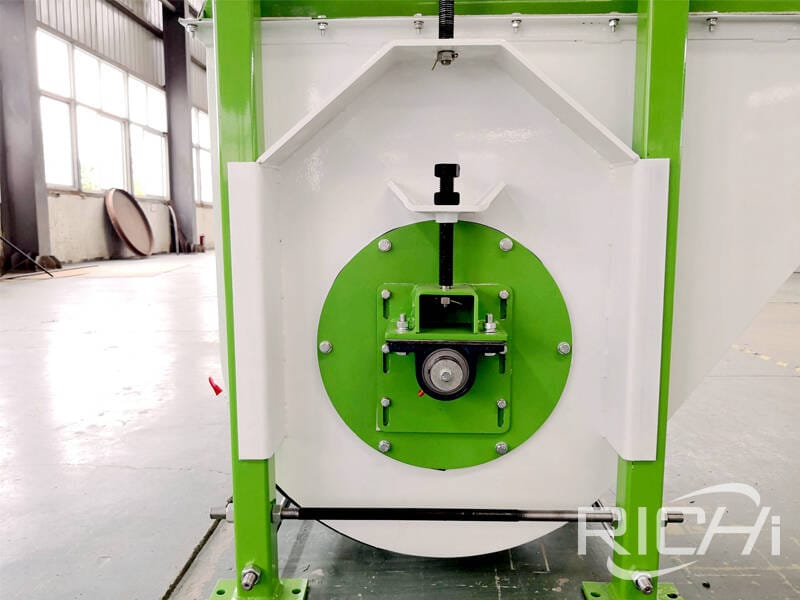

- Connection Part
