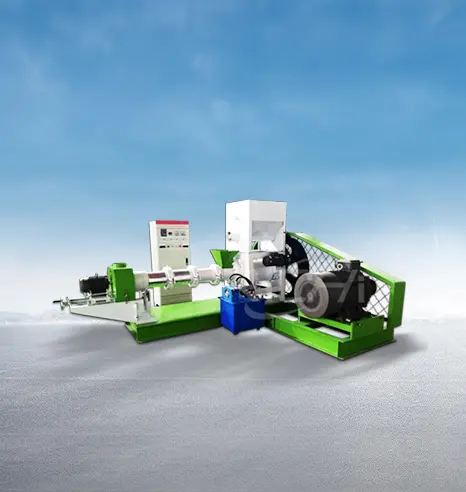

Energy-Efficient Dry-Type Fish Feed Extruder

A dry-type extruder operates without steam or pre-conditioning, making it more energy-efficient and simpler to set up compared to a wet-type extruder, which requires steam or a boiler to function. This lack of steam processing in dry-type extruders results in lower operating costs and maintenance needs, making it ideal for small to medium-scale operations. However, wet-type extruders generally produce more stable pellets and allow for higher flexibility in pellet texture, which may benefit certain types of high-nutrient feeds.

1. Floating feed pellets: Created by adjusting temperature and pressure, ideal for surface-feeding fish.
2. Sinking feed pellets: Suitable for species that feed at lower water levels, produced by managing density.
3. Slow-sinking pellets: Adjustable for species with different feeding habits and pellet buoyancy needs.

1. Energy Efficiency: It doesn’t require steam or additional boilers, reducing energy consumption.
2. Lower Setup Costs: Without the need for steam systems, it is simpler and more affordable to install.
3. Ease of Operation: Fewer components mean easier operation and control.
4. Versatile Output: It can produce both floating and sinking feed, suitable for various aquatic species.
5. Reduced Maintenance: Fewer parts lead to less maintenance, saving time and cost for operators.

Yes, a dry-type aquatic feed extruder is generally suitable for producing feed for most aquatic species, including fish, shrimp, and other aquaculture animals. It can produce both floating and sinking pellets by adjusting temperature, pressure, and moisture, allowing customization to meet the dietary needs of different species. However, for very specific nutritional requirements or pellet textures, such as those needed by certain high-value species, additional configuration or a different extruder type might be more suitable.

1. Grains (e.g., corn, wheat)
2. Fish meal and soybean meal for protein content
3. Oilseed meals for fat content
4. Binders such as wheat bran or corn starch
5. Vitamins and minerals for balanced nutrition

Yes, a dry-type aquatic feed extruder can produce floating feed. By adjusting the temperature, pressure, and moisture during the extrusion process, the feed expands and creates air pockets, allowing it to float. This control makes it suitable for creating feed for surface-feeding aquatic species.

The production capacity of a dry-type aquatic feed extruder varies depending on the model, typically ranging from small to medium scales. Capacities generally span from around 200 kg/h up to 400 kg/h for smaller models, and larger models may reach capacities of up to 1,000 kg/h or more. This range makes it ideal for small and medium-sized aquaculture operations focused on producing feed for fish, shrimp, and other aquatic species.

The optimal moisture level for feed inputs in a dry-type aquatic feed extruder is typically between 8-12%. This moisture range ensures that the raw materials achieve proper consistency and extrusion quality, which helps to produce uniform and stable pellets. Maintaining this moisture level is important for achieving desired pellet density, whether for floating or sinking feeds, and to prevent clogging or inconsistency during the extrusion process.

No, a dry-type aquatic feed extruder typically requires less maintenance than wet-type extruders. Since it doesn’t involve steam or boilers, there are fewer components prone to wear or breakdown. Maintenance tasks generally include regular checks of the motor, screws, and die to ensure smooth operation, along with occasional lubrication. Its simpler design and fewer moving parts contribute to easier upkeep and lower maintenance costs.
