RICHI Series Fish Feed Extruder for Precision & Consistency

Inverter feed system with anti-clogging settings; the thicker and larger pre-conditioning zone for ingredients; the screw design for thorough mixing and expansion; the ability to set up adjustable molds of various sizes; together with Siemens motors providing a powerful and stable drive system; make the RICHI Machinery the first choice of equipment for aquafeed production.

RICHI Machinery Co., Ltd

Brand
RICHI

aquatic industry

Application
Fish Feed

aquafeed pellets

Finished
Extruded Pellets

wet type fish feed machine

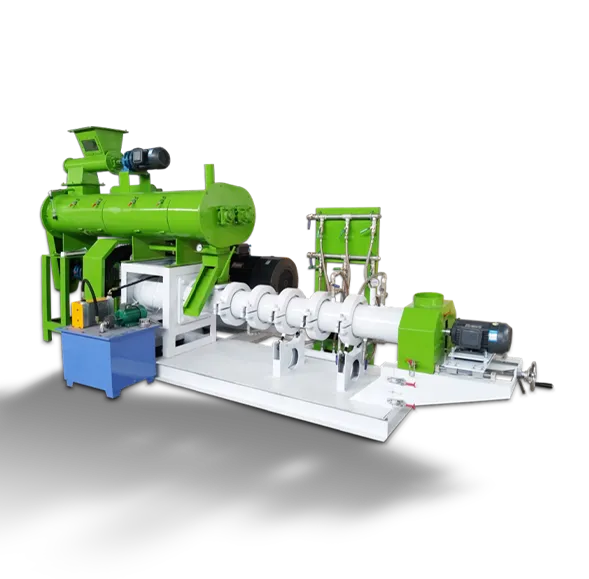

fish feed extruder

Feed Inlet

01

The design of the feed inlet ensures smooth and stable entry of raw materials into the extruder. Its wide structure in conjunction with the inverter-driven motor minimizes the risk of clogging and improves operating efficiency. The adjustable inlet controller allows for precise adjustment of the feed rate, which is essential for maintaining uniform pellet production and adapting to different feedstocks.

Extrusion

02

Raw material after conditioned is fed into the extrusion chamber where it is subjected to high temperatures and pressures. This combination causes the raw material to gelatinize, expand and form a uniform mass. The feedstock is then forced through a die to form it into pellets. Under controlled conditions, the density can be precisely adjusted to form floating or sinking feed.

Discharge

03

International advanced cutting structure, the use of soft knife affixed form, the realization of stepless variable speed, can be cut into any length of the output material into the required length of the product, and is not easy to produce burrs, greatly improving the quality of aquatic puffed feed.

Structure

04

Novel and unique design, simple structure, easy to install, easy to dismantle, easy to unload, easy to operate, and covers a small area, reducing the investment in plant area.

Multifunctional

05

The simple shape and structure do not affect its multifunctional performance. Simply by replacing the discharge template with different aperture diameters and changing the cutting length, you can produce aqua feed pellets suitable for different types of aqua feed.

fish feed extruder test

Adjustable

fish feed extruder steam system

Wet-Type

fish feed extruder driver

Long-life

GET QUOTE

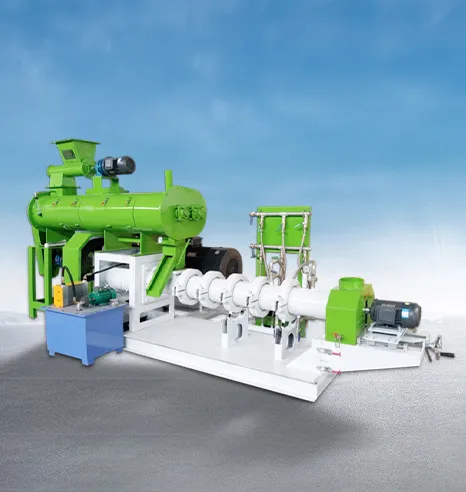

richi series fish feed extruder
  • Feed Inlet
  • Extrusion
  • Discharge
  • Structure
  • Multifunctional



Parameter Table

Model Main Motor Power(Kw) Feeder Power(Kw) Conditioner Power(Kw) Cutting Power(Kw) Screw Diameter(mm) Overall Dimensions (mm) Production Output(TPH)
DSP-90B 37 7.5 1.1 1.1 90 2600*1600*1900 0.5-0.6
DSP-135B 75 7.5 2.2 1.5 135 3750*1980*1950 0.8-1.0

RICHI's Technological Innovations in Wet-Type Fish Feed Extruder

Technological innovation is essentially all about customer service. To make you feel the convenience of RICHI's products, technologies and solutions in the process of fish feed production.

Get Quote

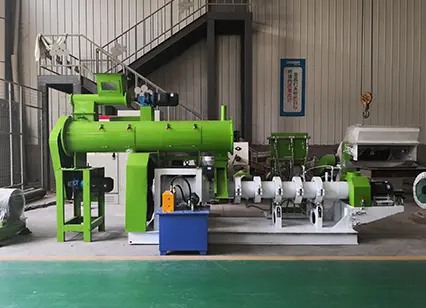

fish feed extruder machine

Feeding & Extruding

The speed-regulating feeding device is convenient for operation and uniform feeding; the stepless variable speed soft knife cutting system realizes the production of products of any length and ensures the quality of products without burrs.

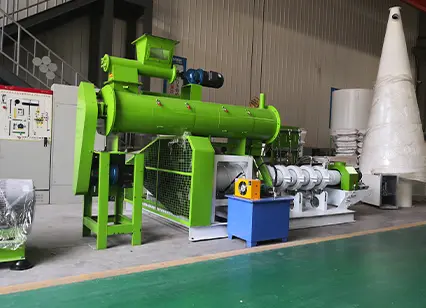

pellet extruder machine

Design & Material

Novel and unique design, simple structure, easy to dismantle and install, easy to operate; screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel material, molded by heat treatment, and the body is likewise made of high-specification alloy steel.

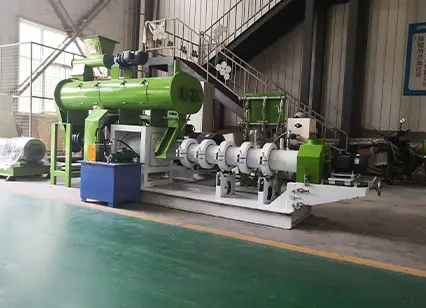

feed extruder machine

Control & Safety

Produces floating pellets of expanded feed that can float on the surface of the water for at least 12 hours without soaking. Maintains the nutrient content of the pellets and reduces the risk of water contamination.

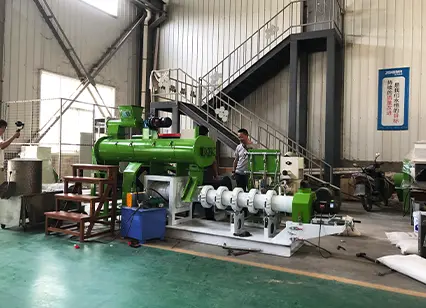

extruder pellet machine

Maintenance & Replacement

The simple structure is not only easy to maintain, but also easy to replace the discharge template, which requires different aperture feeds only need to replace the required aperture template. This not only greatly improves the diversity of aquatic feed pellet production, but also maximizes the return on investment.

Your Seamless Buying Process: From Order to After-Sales Support

Explore our efficient and streamlined purchasing process, designed to simplify and optimize the acquisition of a complete aquatic extruded feed production plant. Every stage is tailored to meet your specific requirements, from the initial schematic design and precise manufacturing processes to secure payment methods and seamless on-site installation and commissioning. Furthermore, our comprehensive spare parts service provides ongoing support and ensures optimal machine performance, offering you long-term reliability and peace of mind.

build your complete pellet production line

Solution Formulation

Solution Formulation

Equipment Manufacture

Equipment Manufacture

Secure Payment

Secure Payment

Spare Parts Service

Spare Parts Service

Complete Solutions For Aquatic Extruded Feed Production

Customize Your Aquafeed Mill Plant Immediately
Raw Material Processing

Raw Material Processing

Essential for preparing and conditioning materials to ensure uniform quality before aquafeed extruding.

Extruding

Extruding

The well-mixed formulated raw materials are puffed and adjusted to produce floating or sinking feed pellets.

Finished Pellet Processing

Finished Pellet Processing

Involves drying, spraying, cooling, screening, and packaging to maintain expanded pellets integrity and ready them for use or sale.

Auxiliary Equipment

Auxiliary Equipment

Supports the aquatic feed pellet production line by enhancing material flow, reducing downtime, and maintaining operational efficiency.

Accessories

Accessories

Includes essential components like screws, crucial for consistent aquatic feed pellet production and machine performance.

HENAN RICHI MACHINERY CO.,LTD

GLOBAL CASE STUDY

Henan Richi Machinery Co., Ltd was founded in 1995. After nearly thirty years of development and expansion, RICHI Machinery has grown into a modern enterprise covering an area of 60,000 square meters and integrating independent research and development, production and sales.

The products involve feed pellet machinery and engineering, biomass pellet machinery and engineering, organic fertilizer machinery and engineering, conveying equipment and engineering, steel structure engineering, silo, automation control technology and engineering, etc., and each product series has passed ISO 9001 international quality management system certification and CE certification!

Get Quote
Aniaml Feed Pellet Production Line
UZ

10-15 TPH Aniaml Feed Pellet Production Line

This state-of-the-art equipment supports a wide range of feed formulations for poultry and livestock, improving feed quality and reducing production costs. And its scalable design accommodates future expansion.

Learn More
Industry Pellet Production Line
US

10-12 TPH Industry Pellet Production Line

The system is fully automated, enabling seamless operation with minimal labor and supporting sustainable agricultural practices through the use of alfalfa and other forages.

Learn More
Wood Fuel Pellet Production Line
MX

10 TPH Wood Fuel Pellet Production Line

Hardwood residues are processed into durable, high-energy biomass pellets. Designed for industrial production, the system utilizes advanced drying and pelletizing technologies to ensure efficiency and quality.

Learn More
Aquatic Feed Pellet Production Line
NGA

5-7 TPH Aquatic Feed Pellet Production Line

This project is capable of producing fish and shrimp feeds, equipped with precise extrusion technology for superior feed quality. The customer emphasizes its reliability and ease of operation as the main advantages.

Learn More
Complete Solutions For Pellet Production

Explore RICHI’s Complete Solutions For Aquafeed Pellet Production

What kind of aquatic feed plant do you want to establish?

How many tons per hour about this plant you want to build?

Where will your aqua feed mill plant be built?

When do you plan to start this project?

Your Guide to Common Questions About RICHI Series Fish Feed Extruder

A RICHI fish feed extruder is a machine that takes raw materials like corn, fish meal, soybean meal, and vitamins, and turns them into floating feed pellets for fish. But it does more than just shape the pellets—it actually cooks and expands them with pressure and heat. This makes the feed float, stay longer on the water, and improves digestion for the fish. If you're farming tilapia, catfish, carp, or ornamental fish, this is the tool that takes your feed from basic to premium quality.

It really depends on your scale and future plans. RICHI has models that start at 200-400 kg/h, perfect for small cooperative farms and business , and go up to 1 ton/hour for those planning to produce feed commercially. A lot of new customers choose the mid-size models (500-600 kg/h) to balance between learning the ropes and meeting market demand. And if you’re not sure, we can walk you through your daily feed needs and help you choose the right machine—not too small, not too big.

That’s a very common question. If you want floating fish feed, you’ll need an extruder. A pellet mill makes sinking pellets—which is okay for some species but not ideal for most aquaculture setups. A high-efficiency extruderlike RICHI’s gives you better feed expansion, digestibility, and waste control. Think of it this way: an extruder gives your feed that “puffed up” look—like cereal for fish. Pellet mills are more like compact biscuits. For surface-feeding fish, extrusion is the gold standard.

Absolutely! You can make custom formulas with what’s available in your region—corn flour, cassava powder, fish meal, rice bran, wheat offal, bone meal, etc. Many of our clients in Southeast Asia and Latin America use totally local recipes, which keeps their costs low and feed fresh. We'll even help you build a basic formula with the right protein, fiber, and oil balance based on your fish species and growth stage. The result? Premium feed quality at a local budget.

Not at all. Most of our customers are first-timers, and once the machine is installed, it’s like learning to ride a motorbike—some practice, and you’re good to go. We provide training videos, simple manuals, and even WhatsApp support for day-to-day use. Your team will learn to:

  1. Adjust pellet size
  2. Manage temperature and moisture
  3. Change dies
  4. Maintain and clean the machine

You don’t need a technician on staff—just someone curious, responsible, and willing to learn.

To produce consistently good feed, most customers also need:

  1. Hammer mill – for grinding raw materials
  2. Mixer – for even blending of nutrients
  3. RICHI fish feed extruder – for extrusion and shaping
  4. Dryer or air cooler – to reduce moisture (especially if packing for resale)
  5. Bagging unit – for packing and storing feed

We can help you build this step-by-step, and you don’t have to buy everything at once. Start lean, grow smart.

Simple test: drop a few pellets in a bucket of water. They should float for 12–24 hours, stay intact, and not turn to mush. If they’re sinking or breaking apart, we’ll help you adjust:

  1. Moisture level
  2. Temperature control
  3. Ingredient ratio
  4. Die shape

Floating feed is not just about the machine—it’s about tuning the whole process. That’s why we’re here to support you, not just sell you equipment.

Yes—our goal is to make fish feed production accessible to small businesses. Our smaller extruders are very budget-friendly, starting from just a few thousand dollars, depending on configuration. As your business grows, we can upgrade you to higher-capacity models or full production lines. And don’t worry—we always provide a transparent quote, so you can plan your investment without surprises.

You're not just buying a machine—you’re partnering with a company that’s helped fish farmers in over 80 countries. Our support includes:

  1. Machine installation guidance
  2. Operator training (on-site or online)
  3. Spare parts supply
  4. Daily operation tips
  5. Feed formula suggestions
  6. Ongoing technical support via WhatsApp, email, or phone

In short, we’ve got your back—from day one to your first ton of floating feed, and beyond.
