Versatile Spiral Conveyor for Accurate Material Transport

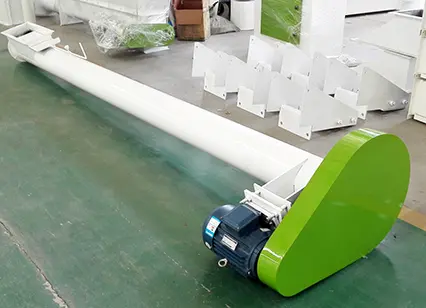

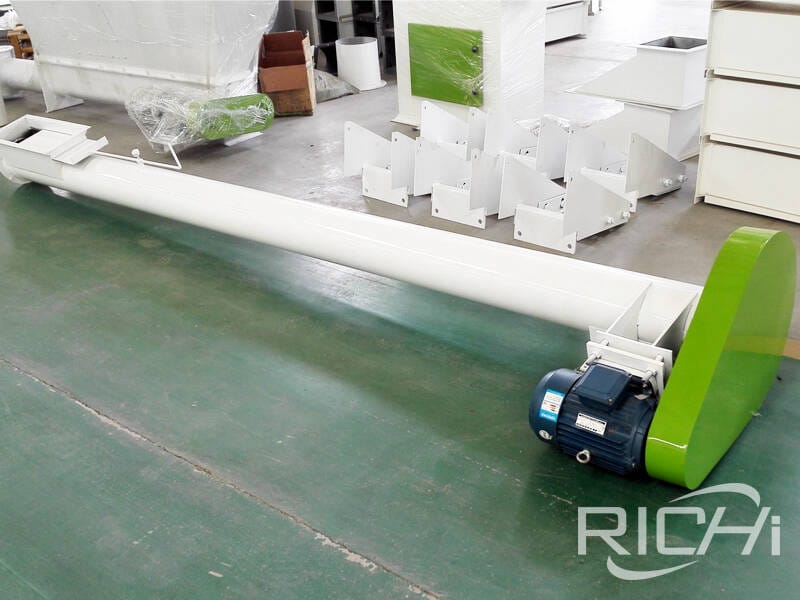

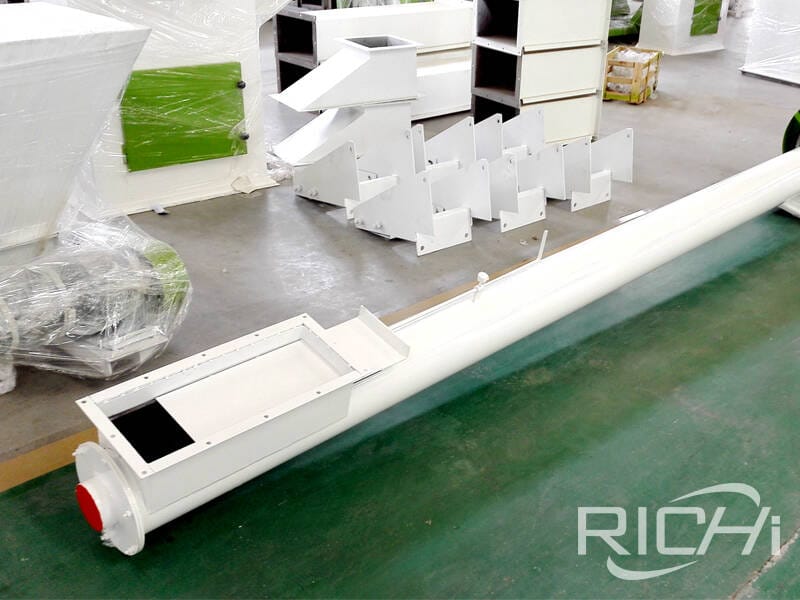

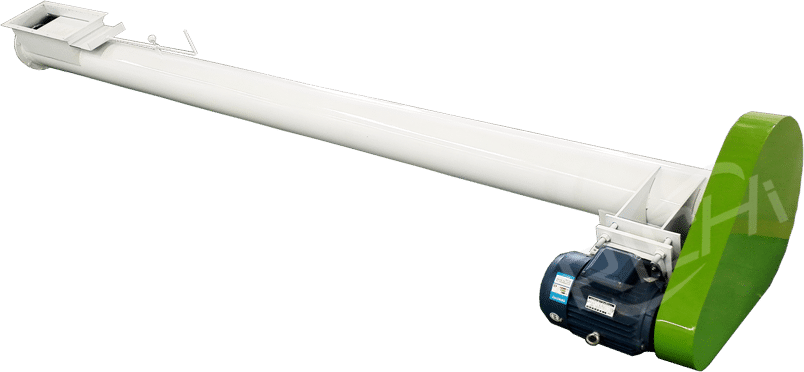

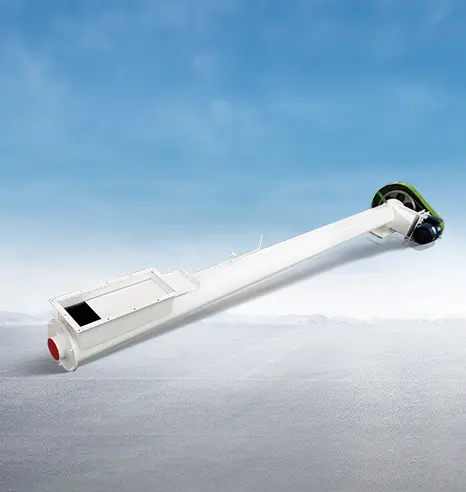

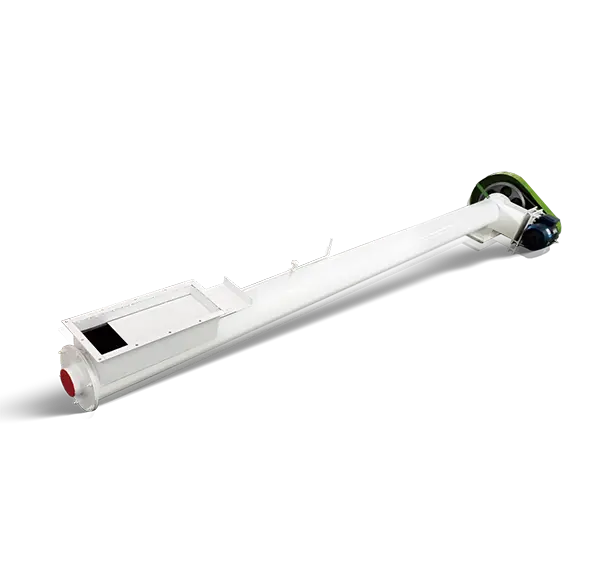

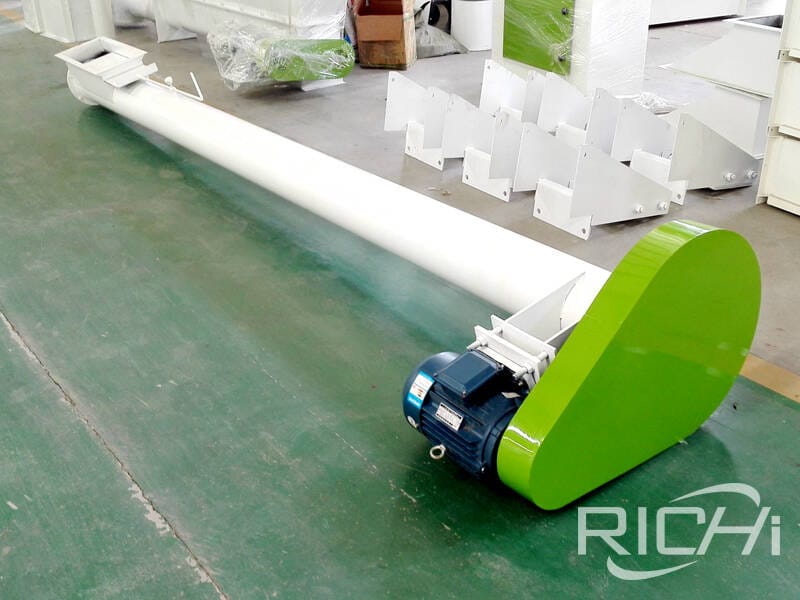

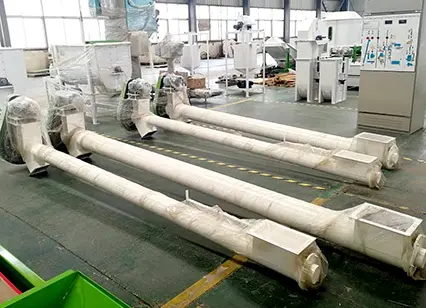

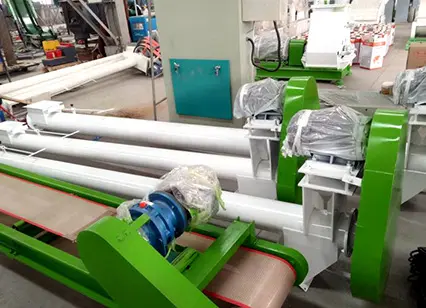

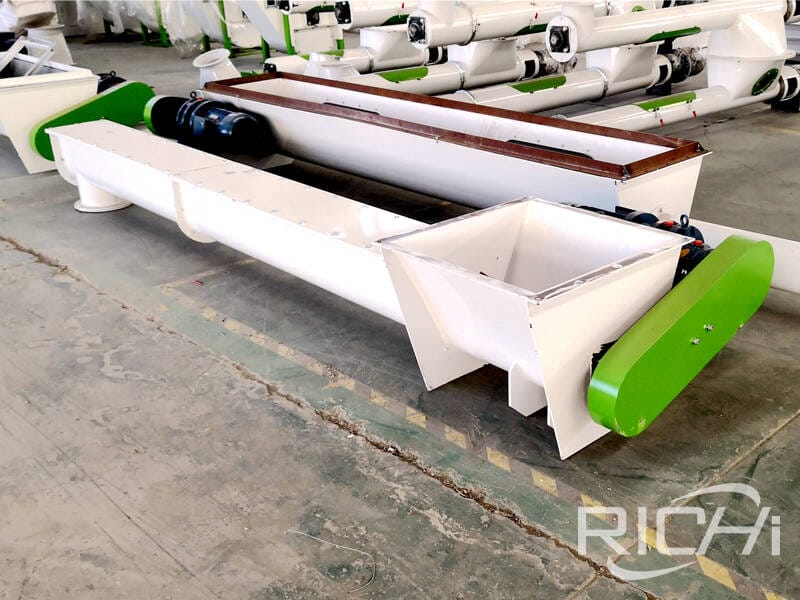

The spiral conveyor operates using a rotating helical blade (or auger) housed within a trough or tube. As the blade rotates, it pushes or pulls the material forward through the trough. This movement is powered by a motor and gearbox, which ensure consistent rotation and material flow. The conveyor can be configured for horizontal, inclined, or vertical transport, depending on the production layout.

Scraper conveyors are designed to handle a wide range of materials, including:

1. Granular Materials: Grains, pellets, seeds, and similar substances.
2. Powdered Materials: Flour, sawdust, or other fine materials.
3. Sticky or Semi-Wet Materials: Depending on the blade design, materials like moist sawdust or mash can also be transported.

1. Efficiency: Provides continuous and consistent material flow, minimizing interruptions.
2. Versatility: Can handle a variety of materials, from powders to granules.
3. Compact Design: Requires minimal floor space, even in vertical configurations.
4. Dust Control: Enclosed designs reduce dust emissions, ensuring cleaner operations.
5. Customization: Easily adaptable for different lengths, inclines, and material types.

Yes, spiral conveyors can transport materials vertically. This is achieved by designing the spiral blade and motor to handle the additional gravitational resistance. Vertical configurations are especially useful for connecting production stages on different levels, such as transporting materials from ground-level hoppers to elevated pellet mills.

1. Inspecting the Spiral Blade: Regularly check for wear, cracks, or deformation, especially if handling abrasive materials.
2. Lubricating Bearings: Ensure all bearings and moving parts are properly lubricated to minimize friction and wear.

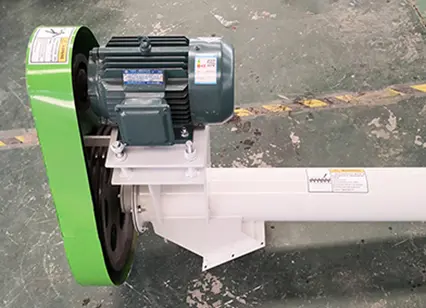

3. Checking the Drive System: Inspect the motor and gearbox for noise or performance issues.

The capacity of a spiral conveyor depends on factors like the blade diameter, pitch, rotational speed, and material density. Typical capacities range from 1 ton/hour to over 80 tons/hour, making them suitable for both small-scale and industrial production lines.

Spiral conveyors are designed to be energy-efficient, with optimized drive systems and low-resistance blades. By minimizing friction and ensuring smooth material flow, these conveyors reduce energy consumption. Additionally, variable speed motors allow operators to adjust the flow rate, further improving energy efficiency.

While spiral conveyors are primarily designed for single material types, they can handle mixed materials if their properties (such as particle size and density) are similar. For precise mixing or transport of multiple materials, additional equipment like mixers may be integrated into the production line.

Yes, spiral conveyors are highly customizable. Manufacturers can adjust the following:

1. Blade Design: For specific materials, such as sticky or abrasive substances.
2. Trough Configuration: Open, closed, or tubular designs for dust control or material protection.
3. Length and Angle: To fit horizontal, inclined, or vertical layouts.
4. Material Construction: Options for stainless steel, carbon steel, or other materials based on application requirements.
5. Motor Specifications: Variable speed drives for precise flow control.
