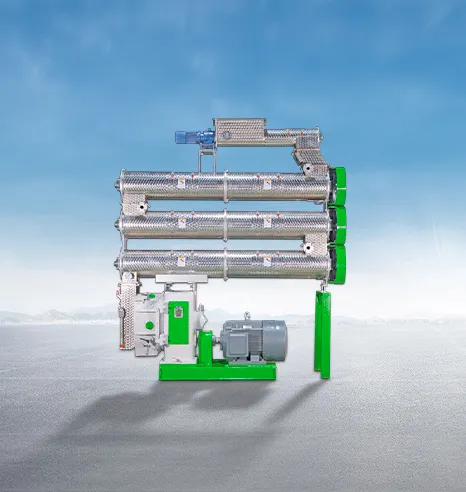

Frequency conversion feeding system, steam tempering system, three-layer stainless steel conditioner, double pressure roller pelletizing system, Siemens electronic control system, plus alloy steel forging body, these become the core of animal feed pellet production.
Brand
RICHI
Model
SZLH 768
Application
Animal
Finished
Pellets
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
|---|---|---|---|---|---|---|---|---|
| Main Motor Power(Kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power(kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power(kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellets Diameter (mm) | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 |
| Production Output (TPH) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
Technological innovation is essentially all about customer service. To make you feel the convenience of RICHI's products, technologies and solutions in the process of animal feed production.
Feeding and conditioning systems
The optimized conditioning system with inverter feeding system improves the safety, nutritional value and maturation of the raw material to a great extent. This improves the overall quality of the feed from the source and ensures healthy feeding.
Drive system
High-end Siemens industrial grade drive motor drives the drive shaft of RICHI animal feed pellet mill, which is more stable and durable than traditional belt drive. In the long run, this not only improves efficiency but also saves maintenance costs.
Structure and material
The body of the machine is made of high quality and high specification alloy steel, which is sturdy and durable, reduces resonance and runs stably. The parts that come into contact with the raw material are made of high grade stainless steel, which does not affect the raw material in any way and greatly improves corrosion resistance.
Control and Safety
Each feed pellet mill is equipped with an independent electric control system and safety stop function. It can not only avoid losses caused by perceived errors, but also effectively protect the pellet mill and subsequent production equipment.
Discover our streamlined buying process that makes it simple and efficient for you to get a complete animal feed pellet production plant. Every step of the way is customized for your convenience, from the initial schematic design and precise manufacturing process to secure payment options and on-site installation and commissioning. At the same time, our dedicated spare parts service ensures ongoing support and optimal machine performance, giving you peace of mind for years to come.
Solution Formulation
Equipment Manufacture
Secure Payment
Spare Parts Service
Essential for preparing and conditioning materials to ensure uniform quality before pelletizing.
The core process where prepared materials are compressed into dense, high-quality feed pellets.
Involves cooling, screening, and packaging to maintain pellet integrity and ready them for use or sale.
Supports the production line by enhancing material flow, reducing downtime, and maintaining operational efficiency.
Includes essential components like ring dies and rollers, crucial for consistent pellet production and machine performance.
HENAN RICHI MACHINERY CO.,LTD
Henan Richi Machinery Co., Ltd was founded in 1995. After nearly thirty years of development and expansion, RICHI Machinery has grown into a modern enterprise covering an area of 60,000 square meters and integrating independent research and development, production and sales.
The products involve feed pellet machinery and engineering, biomass pellet machinery and engineering, organic fertilizer machinery and engineering, conveying equipment and engineering, steel structure engineering, silo, automation control technology and engineering, etc., and each product series has passed ISO 9001 international quality management system certification and CE certification!
Get Quote
This state-of-the-art equipment supports a wide range of feed formulations for poultry and livestock, improving feed quality and reducing production costs. And its scalable design accommodates future expansion.
Learn More
The system is fully automated and requires minimal labor. Customized pellet production solutions can be switched at the touch of a button in the control room for pelletizing a wide range of raw materials.
Learn More
Hardwood residues are processed into durable, high-energy biomass pellets. Designed for industrial production, the system utilizes advanced drying and pelletizing technologies to ensure efficiency and quality.
Learn More
This project is capable of producing fish and shrimp feeds, equipped with precise extrusion technology for superior feed quality. The customer emphasizes its reliability and ease of operation as the main advantages.
Learn More
What kind of animal feed plant do you want to establish?
How many tons per hour about this plant you want to build?
Where is this animal feed plant going to be built?
When do you plan to start the operation?
Yes, and not just in theory—in real working conditions. The SZLH768 feed pellet mill is our maximum capacity pellet mill, designed for industrial feed production lines. It’s used in full-scale factories producing for integrated farms, regional distributors, or even export. One of our clients in Thailand runs it two shifts per day, making both poultry and sinking fish feed—and the machine handles it like a champ. With a proper setup and routine maintenance, you can count on consistent, high-volume production. This is a workhorse, not a prototype.
The three-layer conditioner gives your feed mix extra time to absorb steam and heat, allowing for better gelatinization of starches and improved pellet quality. This matters especially for shrimp feed, sinking fish feed, or any pellet that needs to be firm, water-stable, and nutritionally consistent. But here's the good part: we customize the conditioner to your needs. If your formula doesn’t require a triple-layer setup, we can go with a single or double-layer model to save energy and floor space. It’s about getting you the right tool for your formula.
Yes—this machine is built for multi-species feed production. With the right die, speed settings, and conditioner setup, you can use the SZLH768 to make:
We’ve got customers in South America who produce cattle and poultry feed on alternating days, and one in Vietnam that runs shrimp feed daily. This flexibility is exactly why businesses choose this model.
For a full industrial feed production setup around the SZLH768, you’re looking at a plant size of 1,500 to 2,000 square meters. This includes raw material intake, grinding, mixing, pelletizing, cooling, screening, and packaging zones. Add storage silos or bulk loading bays if you're producing for distribution. We’ll help design your layout for maximum efficiency. One plant in Nigeria even built a double-floor line to optimize vertical space, and we handled the layout, load points, and even airflow considerations. No guessing—we guide you every step.
Yes, the SZLH768 feed pellet mill is built to produce export-grade pellets. With its advanced conditioner, precision rollers, and quality dies, you get:
In Ecuador, one of our customers uses it to produce shrimp feed for overseas buyers. Their buyers inspect pellets for water stability, durability, and nutrient density—and this machine consistently passes the test. If export is your goal, this machine sets you up for success.
The SZLH768 has a robust feeding system, and with proper die selection and conditioner setup, it can process even challenging or fibrous materials. While super-fluffy grass might require pre-mixing or a denser carrier (like corn meal), we've had success with clients using rice husk, cottonseed cake, and even brewer’s grain. In Uganda, one client uses maize bran and cottonseed meal in every batch—and the pellets come out smooth, dense, and clean. We can advise on exact ratios and even help you run test batches to fine-tune your formulation.
The SZLH768 feed pellet mill price depends on your specific setup—just the machine, or a full turnkey line with mixer, cooler, bagging, automation, etc. It’s a capital investment, but designed to deliver long-term returns. We break down all costs clearly, with no hidden extras. We also offer optional automation modules, anti-corrosion coating, and different voltage configurations for different countries. Whether you're in Brazil, South Africa, or Eastern Europe—we adjust it to your specs. If you’re making serious feed, this is the kind of asset that works for you every day.
We take after-sales support very seriously, especially for machines of this scale. Here’s what you get:
We’ve got clients in places like Peru and Indonesia where we support remotely or through regional partners. If anything goes wrong, we respond fast—because we know downtime is lost income.
That depends on your production targets. If you’re aiming for daily output of 600+ tons, the SZLH768 is not overkill—it’s a strategic move. Starting with maximum capacity means fewer machines, lower labor per ton, and more consistent quality. We’ve seen companies start with the SZLH768 and scale up by duplicating lines rather than upgrading machines. One firm in South America went from zero to 3,000 tons/week in under two years—built around this very model. If you have the market or want to dominate it, this machine gets you there faster.
