Contact UsHow to get a good price 3-4 ton pellet mill machine for making chicken poultry feed for sale in Lagose Nigeria?Richi Machinery is a professional China poultry animal feed equipment supplier. It has exported 150kg fish feed extruder line equipment, 1-2 t/h ring die feed line equipment, fish feed extruder, etc. to Nigeria.

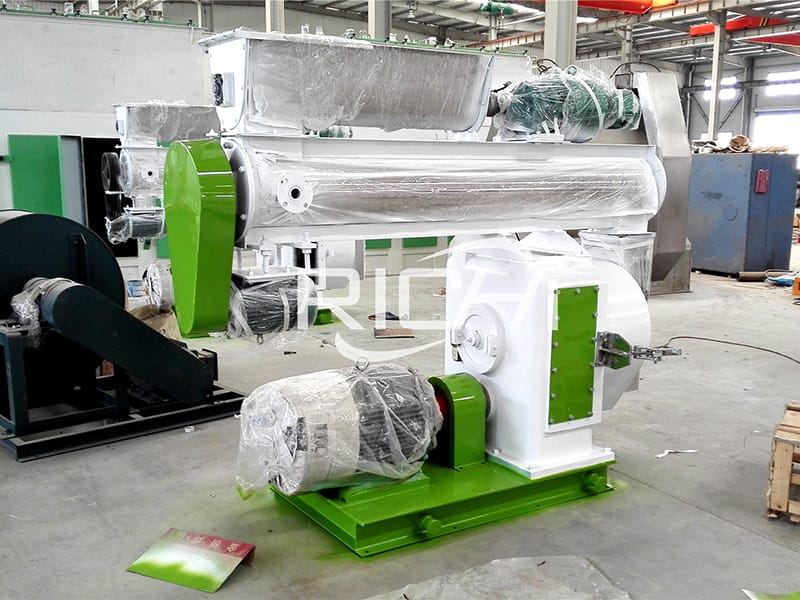

RICHI SZLH series 3-4 ton chicken feed poultry feed pellet milling machine is adopted the most advanced technology of ring die type poultry chicken feed pellet maker machine, And developed,innovated and improved by technicians through years. Especially the ring die and the roller shell are adopted best materials, which is hot quenched. So the life time of a 3-4tph whole set poultry chicken feed pelletizer is increased.
1.Features of RICHI 3-4 ton per hour high quality chicken poultry feed milling machine for sale in Lagose Nigeria
（1）Gear directly-connecting driving is adopted for high efficiency;
（2）Full stainless steel feeder; Variable pitch and anti bridging structure;Electromagnetic converter control;
（3）Stainless steel conditioner; axial steam spraying extends the conditioning time and cooking effect;
（4）Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
（5）Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC.
2.Working principle of 3-4tph ce good performance poultry chicken feed pellet making machine for sale in Lagose Nigeria
The working process is as follows: the poultry chicken compound powder material with water content no greater than 13% enter into screw feeder through hopper, through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, the security magnets remove the magnetic impurity mingling with supplies, then enter the conditioner, through the agitating of conditioner axle to mix with steam to do the conditioning, if needs to add molasses or oil, also to add it from conditioner barrel joining together with steam and conditioning together, (the adding amount of oil seldom exceeds 3%, otherwise difficult to take shape), after conditioning the compound powder material temperature could reach 75-90 ℃, humidity is up to 15%. Then through the chute, enter the pressing room to pelletize finally.
Capacity: 3-4Ton/Hour
With on-site electric control cabinet
Siemens motor, SKF bearing
Feature: Feeder, conditioner, ring die, door are made by stainless steel.
Size of Conditioner: Length 2000mm* Diameter 273mm
Rang of Final pellet: 2.0-10m
Ring die inter diameter: 320mm
Cost of 3-4tph chicken poultry animal feed pelleting machine:16000USD-20000USD.
4.Some poultry chicken feed pellet making line machine for chicken feed making plant cases
(1)Afghanistan 10T/H turnkey full automatic chicken poultry feed manufacturing plant
Main Machines:Feed Grinder Machine*110KW,Batching Scale*1000KG/Batch,Feed Mixing Machine*1000KG/Batch,Pellet Making Machine*110KW,Cooling Machine*SKLN20*20,Pellet Crumbler*SSLG15*150,Screen and Packing Machine,Other Auxiliary Equipment.
Main Raw material:Corn, wheat,Soybean Meal, and other Grain.
Pellet Size2-6mm chicken feed pellet
The install period:40 Days
(2)Uzbekistan 15 tons per hour automatic chicken animal feed pellet making plant
Main Machines :Poultry feed grinding machine*110kw,Batching Scale *1000kg/batch,Feed Mixer*1000kg/batch,Feed Pellet Machine*110KW,Cooling Machine*SKLN20*20,Crumbler Machine*SSLG15*150,Vibrating Sereen ,Packing System and other auxiliary equipment.
Main Raw material:Corn, wheat,Soybean Meal, and other Grain.
Pellet Size:2-6mm chicken feed pellet
The install period:60 Days
(3)Ethiopia 5-6T/H China supply complete poultry chicken broiler animal feed mill plant
Main Machine:poultry chicken grain feed hammer mill*37KW, feed mixer*500kg/batch and other auxiliary equipment.
Main Raw material:Corn, wheat,Soybean Meal, and other Grain.
Pellet Size:powder feed
The install period:30 Days
(4)Kenya 5T/H poultry chicken feedstuff powder feed mill unit line
Main Machine: poultry chicken feed grinder machine*37 kw, animal feed mixer*1000kg/batch, cooling machine*1.5kw, screen machine*1.5kw, auto packing machine and other subsidiary equipment.
Main Raw material:Corn
Pellet Size:powder feed
The install period:30 Days
(5)Zimbabwe 3-5T/H automatic poultry chicken feed mill line
Main Machine: corn hammer mill for chicken*37kw, chicken feed mixer*500kg/batch, poultry feed compress pellet making machine*37kw, pellet cooling machine*1.5kw, pellet crumbler machine*5.5kw, screen machine*1.5kw, coal-fired boiler and other subsidiary equipment.
Main Raw materia:lCorn, wheat, and other Grain.
Pellet Size:1-2mm small baby chicken feed, 3mm,4mm,6mm chicken feed
The install period:30 Days
