Complete 1.5-2.5 tons per hour biomass wood pellet production line price

2021-04-13 Back to List

What is the 1.5-2.5t/h biomass wood pellet production line price? Generally speaking, the cost to build a biomass wood pellet production line with an hourly output of 1.5-2.5 tons is: 80,000-280000 USD. Today, we will take a best selling ce complete 1.5-2.5 tons/hour biomass wood pellet production line design as an example. The work section is introduced and explained as follows:

Richi Machinery specializes in the production of biomass pellet fuel making equipment, which can provide customers with a 1.5-2.5 tons per hour complete latest technology high quality biomass pellet production line using logs, wood chips, shavings, etc. as raw materials; a 1.5-2.5 tons per hour good completely biomass wood pellet production line using building templates and woodworking scraps as raw materials; 1.5-2.5 tons per hour biomass wood granula production line with corn stalks, wheat straw, rice straw, etc. as raw materials; 1.5-2.5 tons per hour professional complete wood pellet production line with husk, pomace, palm, etc. as raw materials; crop waste, sludge, coal dust, etc. as raw materials. RICHI provides various complete biomass materials pelletizing line, can tailor-made various complete best price wood pellet mill plant solutions to meet the different needs of customers.

1. Complete low investment high return 1.5-2.5tph biomass wood pelleting plant production process introduction

(1) Raw materials for 1.5-2.5tph ce full wood pellet production line:

Dried wood chips and shavings from furniture factories, wood processing factories, wooden door manufacturers, wooden molds and pallet manufacturers, etc.

(2) Introduction to 1.5-2.5t/h wood pellet manufacturing process:

The dry wood chips with a moisture content of 13-18% are passed through a drum cleaning screen (20*20mm square holes are selected for the screen) to remove large impurities and then crushed, dried, and granulated. The processed finished particles are available with a diameter of 6-10mm. After the granulation is cooled, it is packed into 20-50kg/bag by a small bag packaging scale, which is convenient for transportation and sale.

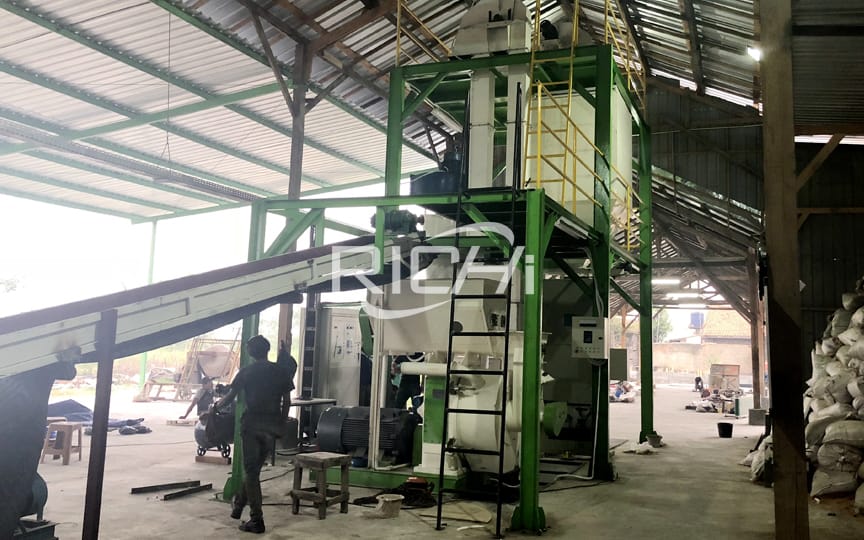

 This 1.5-2.5t/h wood pellet production line for wood pellet plant project is a biomass wood pellet production line with an hourly output of 1.5-2.5 tons. The total wood pellet plant equipment power is about 210kw, and the workshop size is 30*20m. The whole wood pellet production line is compact in design, reasonable in structure, meets environmental protection requirements, and can be designed according to customer requirements.

(3) Process flow for 1.5-2.5 tons capacity fuel pellet production line for biomass wood pellets:

Cleaning section→crushing section→drying section→granulation section→cooling and packing section

(4) Process characteristics and sections are introduced as follows:

①Cleaning equipment: MCY120×300, power 1.5kw, design output per hour: 2-3T

②Crushing section for 1.5-2.5tph wood pellet production line for biomass pellets:

It is designed to decrease the dimensions size of raw materials. The raw materials such as alfalfa, straw, wood, etc. are crushed until their diameter is decreased to 3-5mm. This is because they can reduce the pellet forming rate and block the wood pellet mill machine to make pellets if there size is too big.

③Conveyor section for 1.5-2.5tph industry wood pellet production line:

It conveys the materials between a pair of wood pellet plant equipments. They guarantee that materials are transmitted evenly and saves labour.

④Drying section for 1.5-2.5tph complete wood pellet production line for biomass fuel making pellet:

It is effective in decreasing the moisture content , hence, increases the pellet forming rate as well as improving the wood pellet quality.

⑤Granulation section for 1.5-2.5tph best design wood pellet production line for energy pellets

The diameter of biomass pellets can be selected from 6-10mm. Biomass pellets have the characteristics of high calorific value, no pollution and low ash content. They can be widely used in biomass fuel power plants, biomass steam boilers, household fireplaces, and drying furnaces, and biomass gasifier, etc.

A large capacity high quality wood pelleting machine can occupy a lot of space and is used for large-scale wood pellet production. However, you may require a smaller pellet machine (like 1.5-2.5t/h wood pellet maker machine) which can do the same work and can be set up in a small space. A small wood pelleting plant is used by millers for small-scale wood pellet production. It can also be used to manufacture animal feed pellets and green fuel from biomass materials. The advantage of this type of 1.5-2.5t/h wood pelleting plant is that it can be operated by a single person and thus, saving your money.

Wood pelletizing equipment for 1.5-2.5t/h wood pellet making plant(2 sets): MZLH420, main engine power 90kw, compulsory feeder power 0.75kw, design output 0.8-1.2T/set.

⑥Cooling and packing section for 1.5-2.5t/h good completely biomass wood pellet production line:

Used to reduce particle temperature and particle moisture. The temperature of the particles after cooling is generally not higher than room temperature 5℃, the moisture of the particles after cooling is about 8-10%, and the bulk density of the particles is 650-750kg/m³. Packing can be based on the customer's local sales needs, and choose the appropriate packing scale to facilitate the customer to sell the product. There are usually two specifications of small bag and ton bag. The packaging specification of the small bag packaging scale is: 20-50kg/bag, and the packaging specification of the ton bag scale is: 500 -1000kg/bag.

Cooling equipment: Cooling equipment: SKLN1.5, cooling chamber volume 1.5m³, designed to produce 4T per hour.

Packing equipment: DCS, packing specification 20-50kg/bag, packing speed 3-5 bags/min.

⑦According to the needs of different customers, the scheme can be optimized for configuration:

★When the moisture content of the wood sawdust is higher than 20%, it is necessary to increase the rotary dryer for biomass wood pellet production line, use a high quality wood sawdust dryer machine to dry to 13-15%, and then pelleting;

★The wood pellets packaging equipment can be adjusted according to customers' requirements for finished product packaging. It can also be stored in bulk or steel silo.

2.Some faqs for 1.5-2.5t/h biofuel wood waste pellets production plant

（1）What are the produced wood pellets used for?

The long and short answer to that question is that they are used as a biofuel. Apart from the fuel, they can be used as an absorbent or for horse bedding.

（2）How do l store biomass wood fuel pellets?

After wood waste pellets emerge from the wood pellet manufacturing machine they could be stored in a warehouse, a silo or even a bag. Whatever storage choice one elects to use, keep in mind that keeping away moisture from the pellets is of the utmost importance.

（3）Does pellet fuel burning contribute to air pollution and Global Warming?

The answer to that question is marginal. Emissions of hazardous organic compounds from the burning of wood pellets are the relatively low comparison to other forms of combustion burning, whilst any adverse effects of climate change from pellet burning are yet to be noted in any major study.

If you are mulling over the idea of using wood pellet as a combustible source of energy, you need to look at the advantages that have been listed above and take the first step by acquiring a wood pellet maker machine. RICHI is one of the China professional machinery complete wood pellet production line suppliers. We are also experienced in deisiging industrial scale new technology wood pellet production line with factory price. Your reasonable design new wood pellet production line investment cost need not be massive as we offer to set up and commission for you a new biomass wood pellet production line for pellets that can quite easily fit into your backyard and be carted off into your garage.

Don't hesitate to contact Richi Machinery and tell us your requirements on capacity, biomass wood fuel making raw materials and biomass wood pellet production cost, and we will give you the best suggestions and help you make your customized 1.5-2.5t/h factory offered automatic running wood pellet production line business plan.
