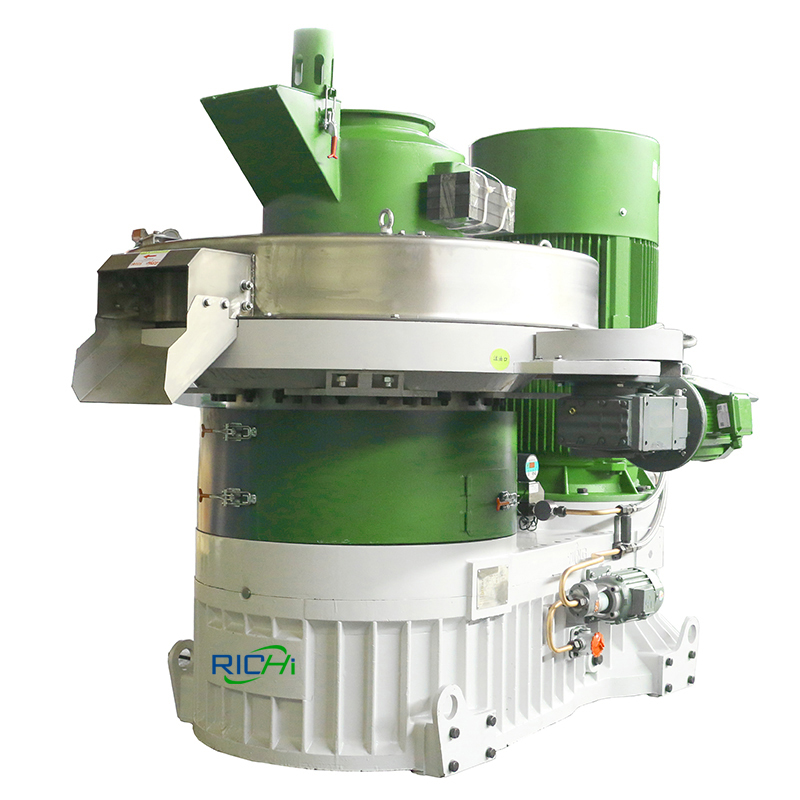

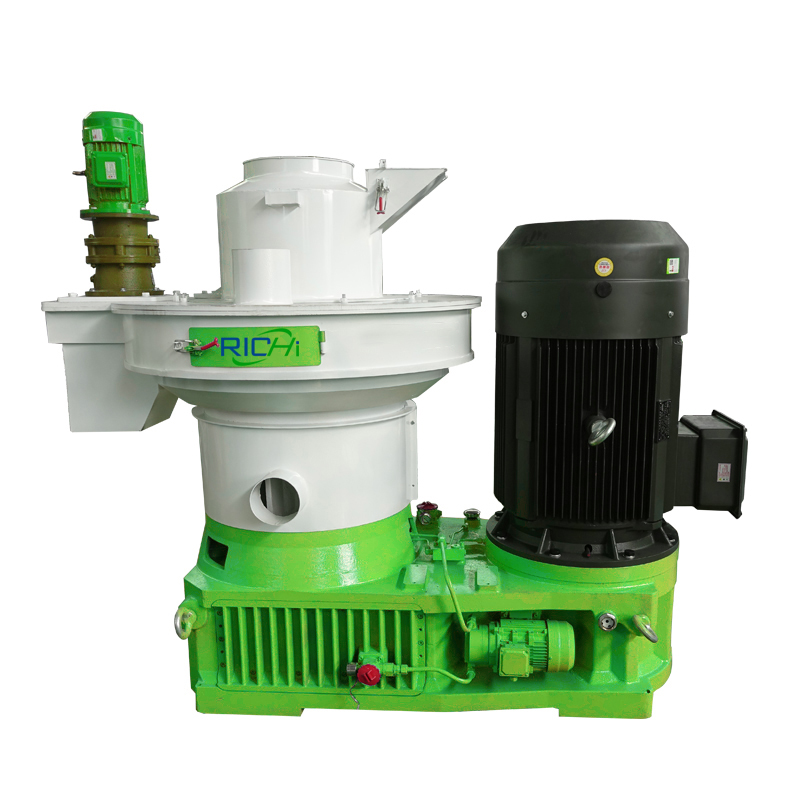

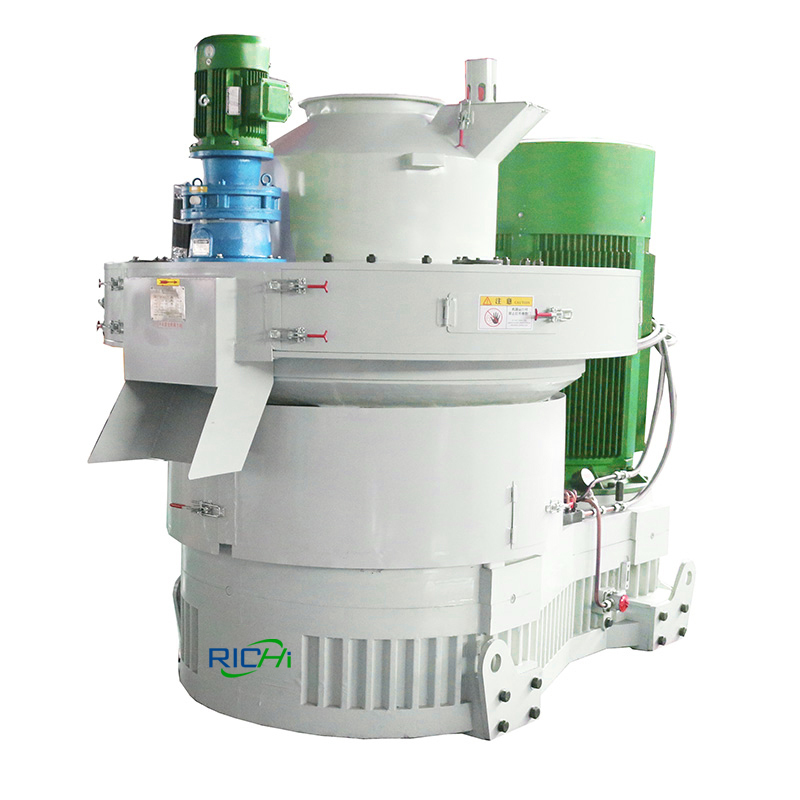

Details of Vertical Wood Pellet Machine:
Advantages of the new generation vertical wood pellet machine:
- Larger Feeding System
We enlarge the feed inlet of the vertical wood biomass pellet machine, optimize the feed rate, make the feed more stable, and effectively improve the pelleting efficiency. - Siemens Brand Motor:
This kind of motor of vertical wood pellet machine is frequency and has thick copper coil, motor of wood pellet mill won’t be burned due to instantaneous current. - Casting material of gearbox with high stability
Gearbox shell of vertical pellet press adopts casting with good rigidity, good heat dissipation, Low heat distortion and high stability. - Dynamic Balance Technology
Every pellet machine in the RICHI factory has been tuned with professional dynamic balancing technology to make it run smoothly in the future. - Cooling system of gearbox enhance the internal bearing life
Gearbox Lubricant of the vertical wood pellet machine adopts bypass water cooling system to avoid oil temperature is too high, greatly enhance the internal bearing life. - Reducer drive of wood pellet machine strengthen with 3 level.
- Stainless steel Die of vertical wood pellet machine with high wear resistance and high capacity.
Raw Materials:
-
Wood
-
Shaving
-
Bale
-
Palm Shell
-
Hop
-
Bamboo
What can biomass pellet do ?
-
Boiler
-
Fireplace
-
Heating system
-
Power plant
Technical Parameter of Pellet Machine :
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH768 | MZLH858 |
|---|---|---|---|---|---|---|
| Capacity(wood sawdust,biomass) | 300-400KG/H | 500-700KG/H | 1.0-1.2T/H | 2.0-2.5T/H | 2.5-4T/H | 3-4.5T/H |
| Capacity(grass,straw) | 600-800KG/H | 800-1000KG/H | 1.5-2T/H | 3-4T/H | 5-7T/H | 8-10T/H |
| Feeding Requirements | 3-5mm | |||||
| Final Pellet | 6-12mm | |||||
| Weight(KG) | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 |
| Dimensior(mm) | 2200*900*1300 | 2500*1100*1600 | 2800*1150*1730 | 3000*1260*1860 | 3300*1500*2000 | 3500*1600*2180 |
| Delivery time | 12-30Days | |||||
| Warranty | 1Year | |||||
Accessories introduction:
-
Casted Gear Box
-
Pellet Mill-Bearing Roller
-
Pellet Mill-Ring Die
-
Siemens Motor
Export Case:
-
Customized 10 Tons Per Hour Automatic Completely Biomass Wood Fuel Pellet Production Plant In United States
-
Customized Complete 2-2.5tph High Quality Ce Wood Pellet Mill Line In Germany
-
1-1.5t/H Wood Pellet Production Line In Indonesia
-
10 Ton Per Hour Large Capacity Heavy Duty Wood Pellet Manufacturing Plant In Mexico
Exhibitors:
-
2019.3 Japan Exhibition
-
2019.6 Indonesia Exhibition
-
2019.12 Russia Exhibition
-
Exhibition
FAQ:
-
Q: Are you manufacturer or trading company?
We are professional pellet machine manufacturer and supplier in China, also with marketing department and R&D center.
-
Q: I am newer to biomass wood pellet production industry, how to design the suitable pellet plant?
Don‘t worry. We have helped many beginners. We provide the best project design plan and production equipment configuration according to the needs of each customer, different production plans, and different raw materials.
-
Q: Do you offer installation and training?
Yes. We can dispatch technicians to customers' site to help install equipment and train how to operate.
-
Q: How can you guarantee the after-sales service?
We have a professional after-sales service center with experienced and skilled engineers. When there is a problem with the equipment, our engineers will be sent to your site to solve the problem in time.
-
Q: Are there some pellet production project in my area I can observe?
RICHI Machinery have pelletizing cases in many countries, if there are projects in your country, we can contact the customer to arrange a visit for you.
-
Q: Which kinds of raw material can be used for making pellets?
Sawdust (waste wood chips/shavings), other forest waste, agricultural straw, stalk, bamboo, peanut shells, rice husk, bagasse, alfalfa, palm fiber etc.
-
Q: What is the main process for making pellets?
Coarse Crushing Section(Splitter, Wood Chipper)—Drying Section—Crushing Section—Pelletizing Section—Cooling Section—Packing Section
-
Q: What is RICHI's work flow?
Inquiry—Quotation—Communication—Order Confirm & Payment Received—Production—Production Tracing & Inspection—Check Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Debugging
-
Q: How do I pay to you?
(1) 30% deposit of the total amount to be paid by T/T after signing the sales contract, the balance of 70% will be paid before the goods leave the factory. (2) 30% deposit of the total amount to be paid by T/T after signing the sales contract, the balance of 70% can be paid by L/C before the factory leave goods. (3) We can negotiate specific payment terms with our client.
-
Q: How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30-60 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.
-
Q: How about the documents after shipment?
After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
