Wood Sawdust Making Machine
- Brand : RICHI
- Capacity : 2-4T/H
- Model : RI-800
- Main Power : 37KW
-
Guiding Price :
FOB 5000-20000 USD
Brief Introduction
The wood sawdust making machine series can cut the raw materials including logs, boards, veneers, bamboo, and other non-wood fiber rods into uniform sheets.
Get QuoteThe wood sawdust making machine is composed of chips cutting device and crushing device, and it could be equipped with cutter, could be used for shredding logs, slab, veneer, bamboo, brushwood etc. Efficient wood crusher impact blade cutting and high speed air flow, collision double crush functions in an organic whole, and can complete the material separation processing process at the same time. Produced in the process of blade cutting grinding, rotor high-speed airflow, along with the blade cutting direction, materials in the airflow speed, and repeated shocks make material by double crush at the same time, accelerated material crushing rate.
| Model | Capacity (kg/h) | Main Power (kw) | Cutter (pcs) | Rotate Hammers (pcs) | Inlet max. dia.(mm) | Weight (kg) | Dimension (mm) |
| RI-800 | 2000-4000 | 37 | 4 | 36 | 220 | 560 | 2100*1200*1450 |
Wood Sawdust Making Machine
| Model | RI-600 | RI-800 | RI-1000 | RI-1200 |
| Capacity (kg/h) | 800-1000 | 2000-4000 | 4000-6000 | 6000-8000 |
| Main Power (kw) | 15 | 37 | 55 | 75 |
| Cutter (pcs) | 4 | 4 | 6 | 8 |
| Rotate Hammers (pcs) | 24 | 36 | 96 | 112 |
| Inlet max. dia.(mm) | 170 | 220 | 320 | 360 |
| Weight (kg) | 360 | 560 | 1260 | 1800 |
| Dimension (mm) | 1900*900*1300 | 2100*1200*1450 | 2600*1450*1800 | 3100*1800*2150 |
What Are The Parts of Wood Sawdust Making Machine?

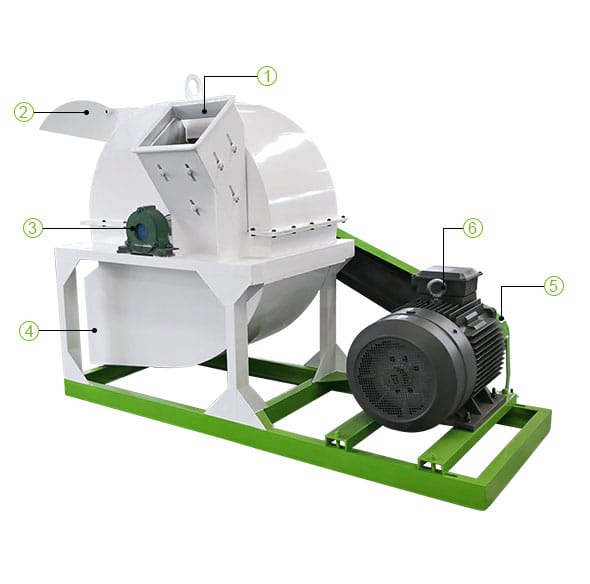

Wood sawdust making machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, crushing system, etc. The following figure is for reference.
Contact Us-
-
1. Raw Material Inlet (small branches)
2. Raw Material Inlet (large logs)
3. SKF Bearing
4. Sawdust Discharge Port
5. Belt Connection
6. Siemens Main Motor
Detailed Instructions of Wood Sawdust Making Machine
RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.
Contact Us-
All RICHI equipment promises to use SKF bearings to improve equipment stability and service life
-
RICHI wood sawdust machine series adopt thicker screens to deal with wood raw materials, and there are fixed devices under the screens
-
Efficient, stable performance wood sawdust making machine is always your best choice
-
The main motor of this equipment adopts Siemens motor, which has stable performance and longer service life
-
We use a replaceable screen device, you can change the screen at any time to achieve the fineness of the crush
-
All hammers will be adjusted by dynamic balancing equipment to achieve maximum stability
-
The upper feed inlet is suitable for shredded branches, small wooden sticks, small wooden boards and other raw materials
One Equipment, Multiple Uses
This wood crusher machine series can be used in pulp and paper making plant, particleboard plant, wood pellets making plant and so on.
Contact Us
Accessories
Doing high quality products is RICHI's long-standing commitment. We guarantee that every equipment uses high specification accessories.
Contact Us
-
SIEMENS
Motor
-
SKF
Bearing
-
Grinder
Hammer
-
Grinder
Screen Sheet
