Fish Feed Processing Machine
- Brand : RICHI
- Capacity : 5-7T/H
- Model : SZLH350
- Main Power : 55KW
-
Guiding Price :
FOB 7000-100000 USD
Brief Introduction
The material is fully matured between the screw and the screw sleeve by high temperature and high pressure, and then extruded to form a pellet.
Get QuoteWith two conditioners inside, better for making fish feed pellets; Manufacturing according to internationally advanced technology standard; The quality matching with the European standard; Gear driving system, with good transmission rate, stable and reliable performance and low noise; The key components are imported to ensure longer service life and lower cost for maintenance; Raw material contacting parts are made by stainless steel; High efficiency, Stable and classical gear driving，non-slipping，can really ensure the production output. Low noise，optimized ring die，maximum output.
| Model | Capacity(TPH) | Main Motor Power(kw) | Feeder Motor Power(kw) | Conditioner Power(kw) | Dia.of Ring Die(mm) | Final Pellet(mm) |
| SZLH350 | 5-7 | 55 | 1.5 | 3 | 350 | 2~12 |
Fish Feed Processing Machine
| Model | Capacity(TPH) | Main Motor Power(kw) | Feeder Motor Power(kw) | Conditioner Power(kw) | Dia.of Ring Die(mm) | Final Pellet(mm) |
| SZLH250 | 1-2 | 22 | 0.75 | 1.5 | 250 | 2~12 |
| SZLH320 | 3-4 | 37 | 1.5 | 2.2 | 320 | 2~12 |
| SZLH350 | 5-7 | 55 | 1.5 | 3 | 350 | 2~12 |
| SZLH420 | 8-12 | 110 | 1.5 | 7.5 | 420 | 2~12 |
| SZLH508 | 10-18 | 160 | 2.2 | 11 | 508 | 2~12 |
| SZLH558 | 15-25 | 180/200 | 2.2 | 11 | 558 | 2~12 |
| SZLH558D | 14-22 | 160/180/200 | 1.5 | 7.5 | 558 | 2~18 |
| SZLH678 | 20-30 | 220/250 | 2.2 | 11 | 678 | 2~12 |
| SZLH678D | 15-25 | 200/220/250 | 2.2 | 11 | 673 | 2~18 |
| SZLH768 | 25-40 | 280/315 | 2.2 | 11 | 768 | 2~12 |
| SLZH858 | 25-42 | 280/315 | 2.2 | 15 | 858 | 2~18 |
Application of Fish Feed Processing Machine
It is based on crushed materials such as corn, soybean meal, and wheat, and widely used in grain and feed processing plants, aquatic farms, livestock farms, poultry farms, or large, medium and small feed processing plants.
Get Quote
Accessories
RICHI uses high-quality steel and has been processed through multiple processes to provide customers with high-quality ring dies and press rollers, and promises to use Siemens motors and SKF bearings.
Get Quote
-
SIEMENS
Motor
-
SKF
Bearing
-
Extruder
Discharging die
-
Extruder
Single-thread
Equipment In RICHI Workshop

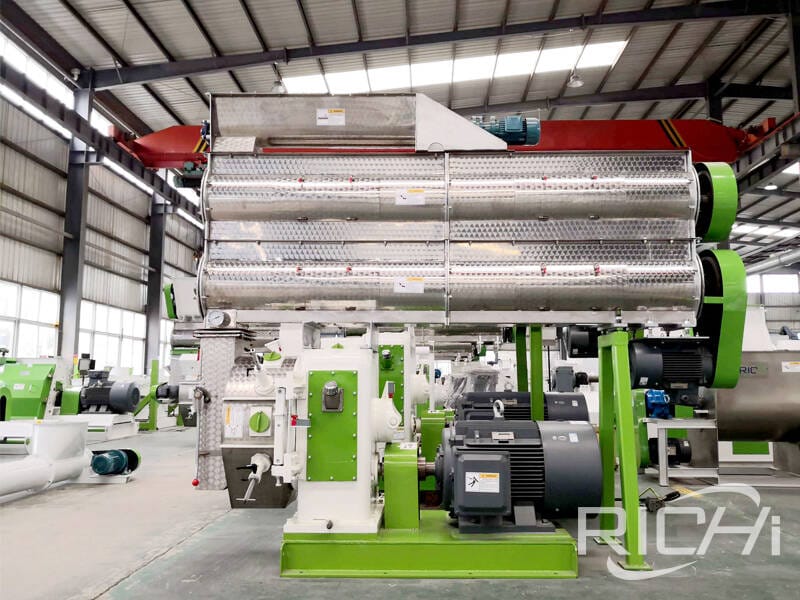

- Fish Feed Processing Machine

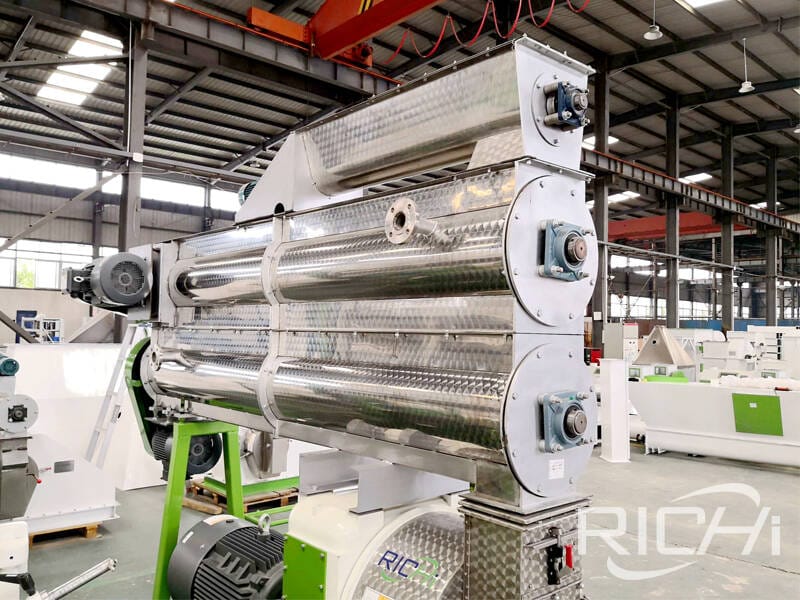

- Double-layer Conditioner

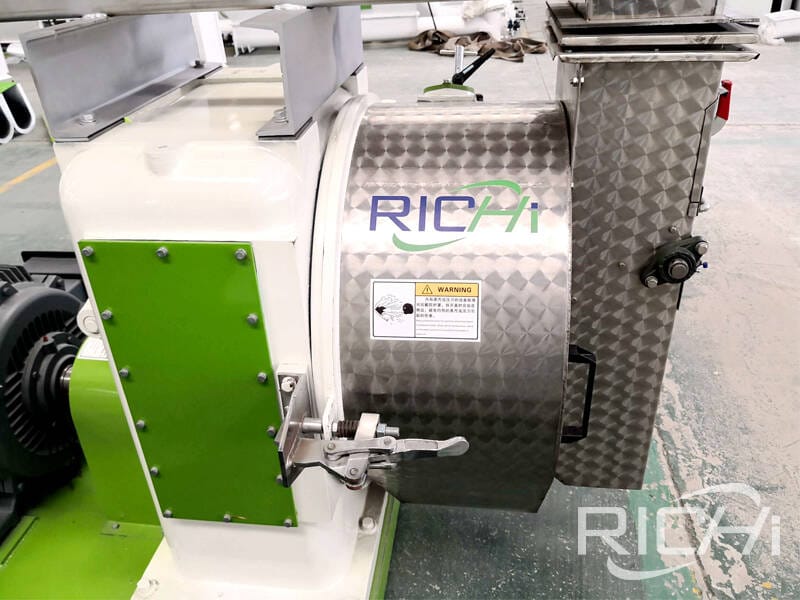

- Pelletizing Chamber

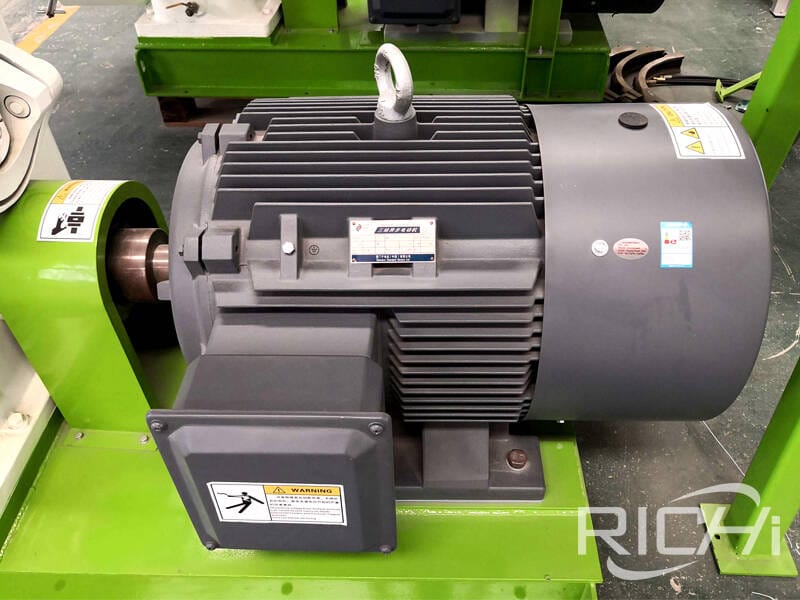

- Siemens Motor
Application
Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
