Double-layer Conditioner Feed Extruder
- Brand : RICHI
- Capacity : 2T/H
- Model : DGP200-B
- Main Power : 132KW
-
Guiding Price :
FOB 2000-30000 USD
Brief Introduction
The material is fully matured between the screw and the screw sleeve by high temperature and high pressure, and then extruded to form a floatable expanded pellet.
Get QuoteThe floating pelletized feed produced can float on the surface of the water for at least 12 hours without blistering. Fish and poultry prefer to digest, and the artificial frog can easily observe the food consumption of the frog fish without causing waste of feed. Pollution of water quality. The material effectively kills harmful bacteria such as Escherichia coli and Salmonella by high temperature and high pressure, ensuring the hygiene of the feed, facilitating protein denaturation and starch gelatinization, and being easily absorbed by fish and livestock. Generally, puffed floating fish feed is used to save 8%-15% of feed compared to powdered or granular feed.
| Model | Capacity(t/h) | Main motor power(kw) | Feeder power(kw) | Screw diameter(mm) | Cutter power(kw) |
| DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0-4.0 |
Double-layer Conditioner Feed Extruder
| Model | Capacity(t/h) | Main motor power(kw) | Feeder power(kw) | Screw diameter(mm) | Cutter power(kw) |
| DGP40-Cs | 0.03-0.04 | 3.0*2 | 0.4 | Φ40 | 0.4 |
| DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 |
| DGP50-C | 0.06-0.08 | 11 | 0.4 | Φ50 | 0.4 |
| DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 |
| DGP70-B | 0.18-0.2 | 18.5 | 0.4 | φ70 | 0.4 |
| DGP80-B | 0.2-0.25 | 22 | 0.4 | φ80 | 0.6 |
| DGP90-B | 0.30-0.35 | 37 | 0.6 | φ90 | 0.8 |
| DGP120-B | 0.5-0.6 | 55 | 1.1 | φ120 | 2.2 |
| DGP135-B | 0.7-0.8 | 75 | 1.1 | φ133 | 2.2 |
| DGP160-B | 1-1.2 | 90 | 1.5 | φ155 | 3 |
| DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0-4.0 |
Application of Double-layer Conditioner Feed Extruder
This equipment uses corn, soybean (bean cake) animal wastes as raw materials, can be expanded to produce different particle shapes, suitable for different pet tastes such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, donkeys, foxes, etc.
Get Quote
Accessories
RICHI provide various shapes of high-quality stainless steel mold, the production of expanded particles suitable for the customer, the motor apparatus Siemens.
Get Quote
-
SIEMENS
Motor
-
SKF
Bearing
-
Extruder
Discharging die
-
Extruder
Single-thread

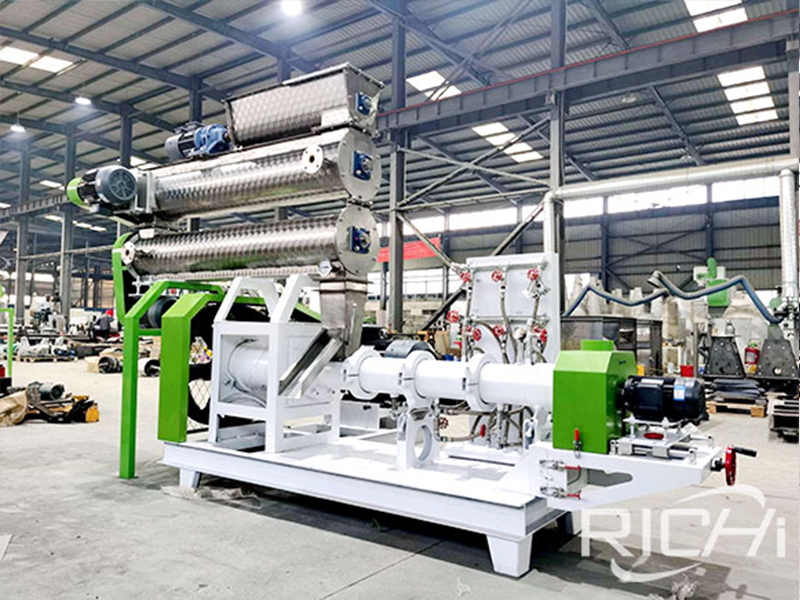

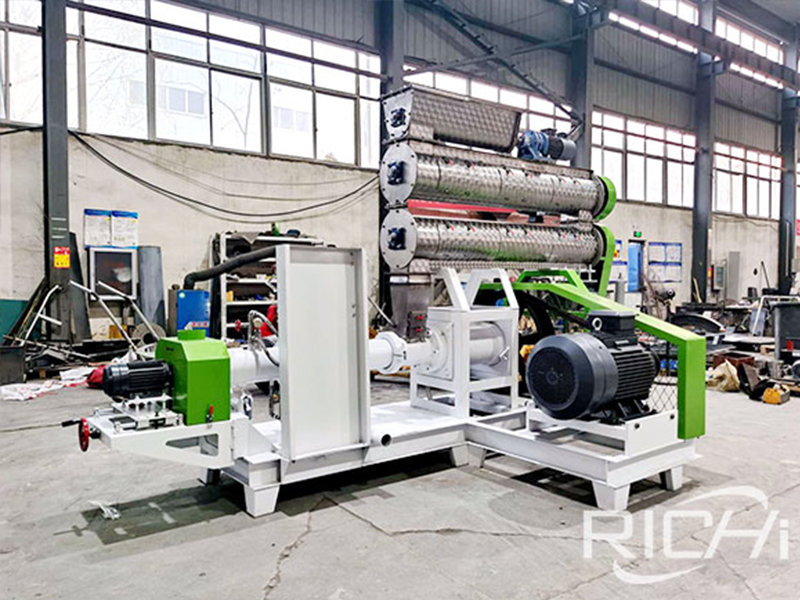

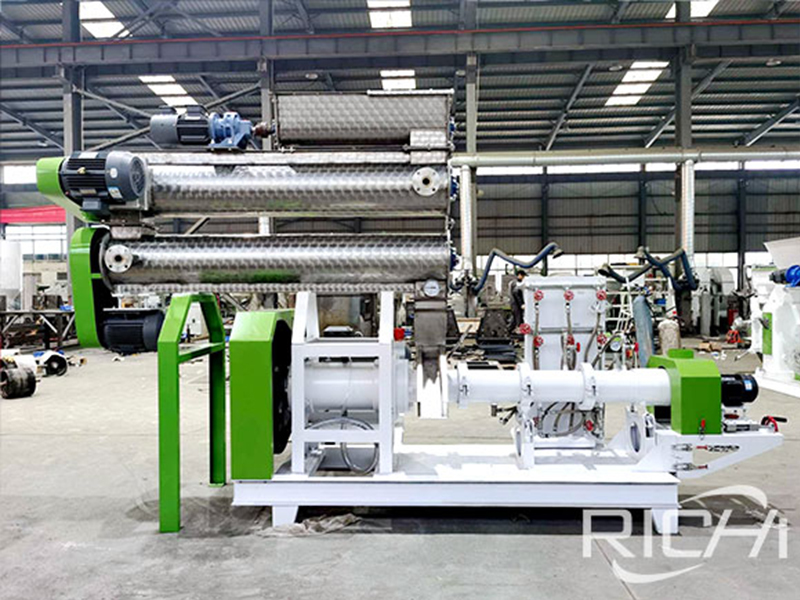

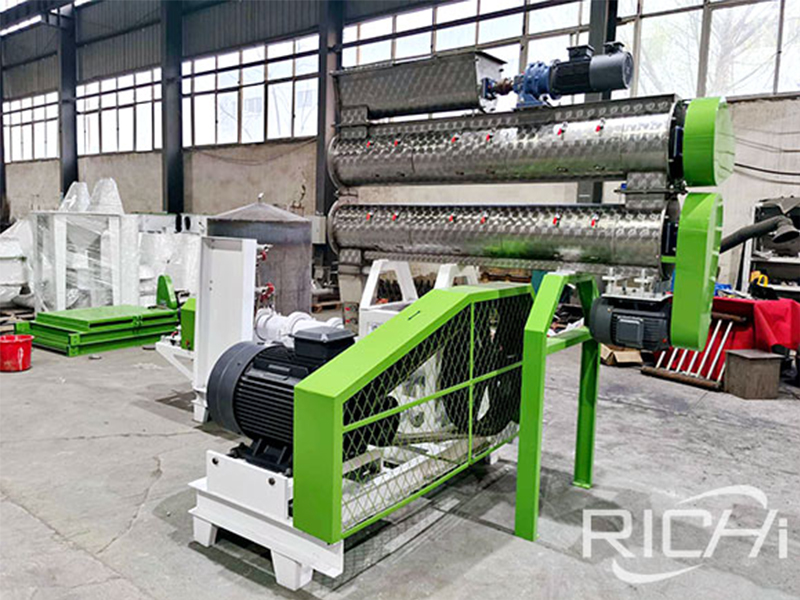

Equipment In RICHI Workshop
- Double-layer Conditioner Feed Extruder
- Fish Feed Extruder
- Aqua Feed Extruding Machine
- Feed Extrusion System
Application
Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
Get Quote
