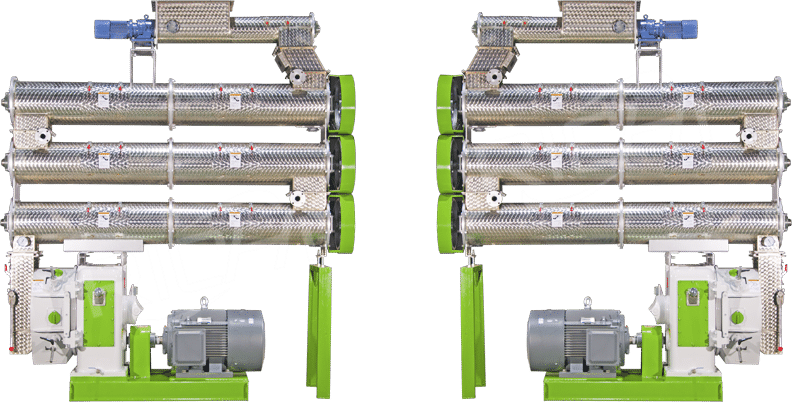

Feed Pellet Processing Machine

: Brand : RICHI

: Capacity : 8-12T/H

: Model : SZLH420

: Main Power : 110KW

: Guiding Price :
FOB 30000-40000 USD

Brief Introduction

The material passing through the modulator enters the granulation chamber and rapidly extruded through the ring die and the press roller to form cylindrical pellets.

Get Quote

Triple-layer stainless steel conditioner improves feed maturity and quality. High efficiency, Stable and classical gear driving，non-slipping，can really ensure the production output. Low noise，optimized ring die，maximum output. Hygiene and safety. CE certified standard design and available stainless conditioner for feed，human and machine safety. Flexible production. Wide product rangeΦ1.5mm-Φ12mm pellets，conditioner with molasses and steam adding function. User-friendly operation. Hydraulic system for ring die change and roller adjustment（optional），quick ad precise operation；auto-lubrication system（optional）and die & roller lifting device，save labor；on-site touch screen control.

Model	Capacity(TPH)	Main Motor Power(kw)	Feeder Motor Power(kw)	Conditioner Power(kw)	Dia.of Ring Die(mm)	Final Pellet(mm)
SZLH420	8-12	110	1.5	7.5	420	2~12

Feed Pellet Processing Machine

Model	Capacity(TPH)	Main Motor Power(kw)	Feeder Motor Power(kw)	Conditioner Power(kw)	Dia.of Ring Die(mm)	Final Pellet(mm)
SZLH250	1-2	22	0.75	1.5	250	2~12
SZLH320	3-4	37	1.5	2.2	320	2~12
SZLH350	5-7	55	1.5	3	350	2~12
SZLH420	8-12	110	1.5	7.5	420	2~12
SZLH508	10-18	160	2.2	11	508	2~12
SZLH558	15-25	180/200	2.2	11	558	2~12
SZLH558D	14-22	160/180/200	1.5	7.5	558	2~18
SZLH678	20-30	220/250	2.2	11	678	2~12
SZLH678D	15-25	200/220/250	2.2	11	673	2~18
SZLH768	25-40	280/315	2.2	11	768	2~12
SLZH858	25-42	280/315	2.2	15	858	2~18

What Are The Parts of Pellet Machine?

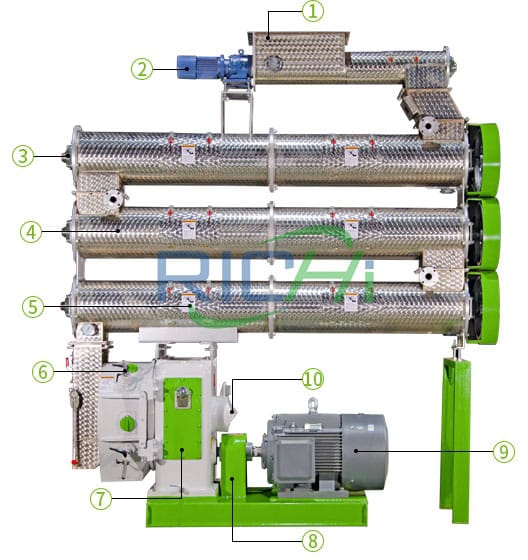

Pellet machine is a key equipment for the production of pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. The following figure is for reference.

: 1. Stainless Steel Feeder
2. Frequency Conversion Motor
3. SKF Bearing
4. Stainless Steel Conditioner
5. Observe Port
6. Cutter Assembly
7. Gearbox
8. Shaft Coupling
9. SIEMENS Motor
10. Safety Assembly

Detailed Instructions of Pellet Machine

RICHI always believes that good products are one of the important indicators of corporate survival. We use high-standard materials in the production process and cooperate with internationally renowned brands to ensure that we can bring high-quality equipment to customers. The following is a detailed display of RICHI pellet machine.

Frequency Control Feeder with Anti-caking device
Stainless steel conditioner, 304 stainless steel, used for feed ripening, sterilization, improve water resistance and output
304 Stainless steel paddles, precise Angledesign, reasonable blade layout, corrosion resistance
Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption
Siemens Motors
304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology
Press Roller Section - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller

Application of Feed Pellet Processing Machine

It is based on crushed materials such as corn, soybean meal, and wheat, and widely used in grain and feed processing plants, livestock farms, poultry farms, or large, medium and small feed processing plants.

Equipment In RICHI Workshop

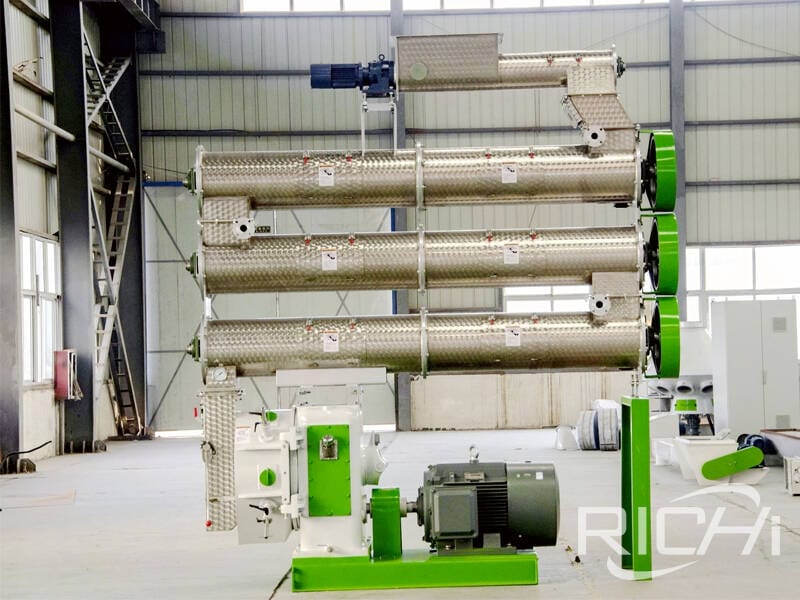

: Feed Pellet Processing Machine

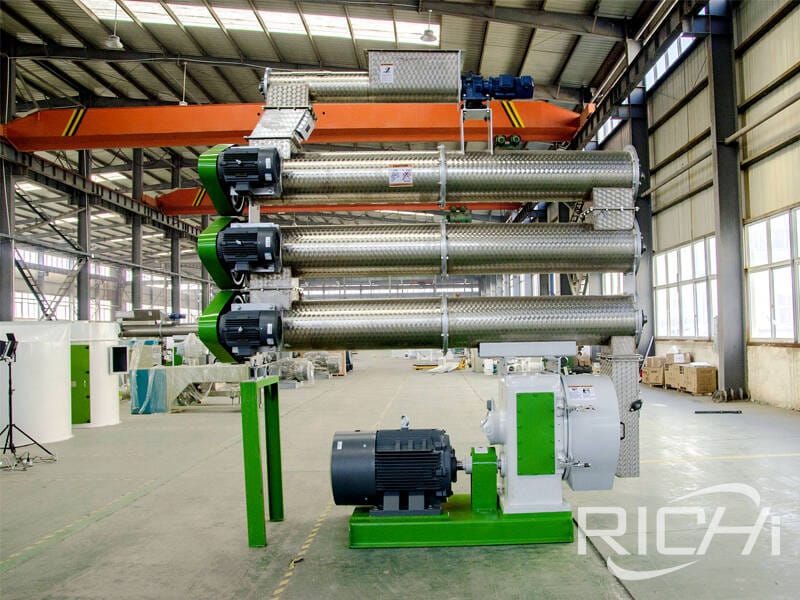

: Animal Feed Pellet Machine

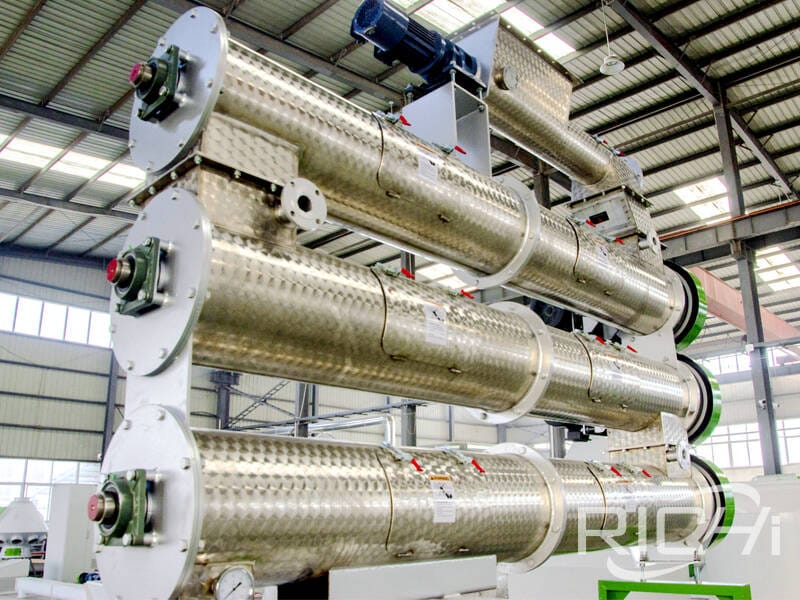

: Triple-layer Conditioner

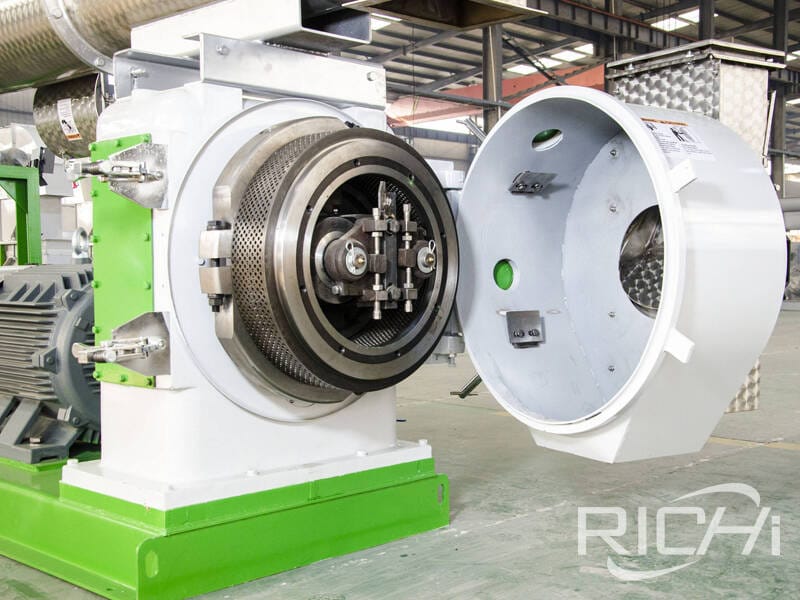

: Pelletizing Chamber

Application

Our products are usually used in conjunction with other equipment in the production line and have a wide range of applications. The following are common pellet production lines for reference only. If you have different requirements, please contact us for customization.
